500kg Indoor Small Hydraulic Electric Wall Mounted Warehouse Pallet Lift

Product Description

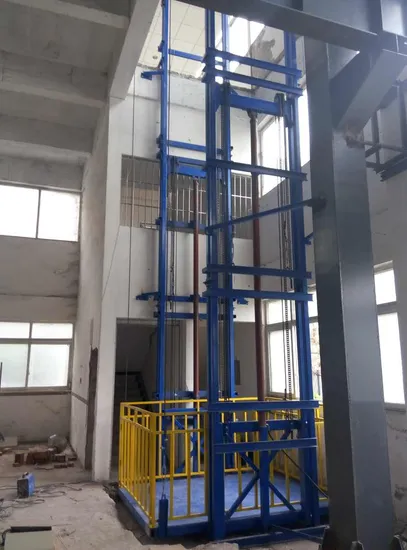

RACERMAX 500kg Indoor Small Hydraulic Electric Wall Mounted Warehouse Pallet Lift 1. PRODUCT DESCRIPTION The goods elevator is designed as a two or multi-column elevator. It is fixed either to a
storage platform or steel structure from our wide accessory segment.
* Up to 8,000 lbs Capacity
* Carriage sizes up to 12' x 10'
* Up to 22′ vertical rise
* Indoor or outdoor models
* Lifetime structural warranty
* Control panel remotely mounted

2.SPECIFICATIONS * The dimension is customized, Below regular dimension FYI only.

Type	Model	Platform size	Lifting height	Load capacity	Motor power
Single guide-rail	RSJD 0.2-3	1000*1000mm	3m	o.2t	1.5kw
	RSJD 0.5-5	1500*1500mm	5m	0.5t	2.2kw
	RSJD 1.0-10	1500*1500mm	10m	1t	3kw
Double guide rail	RSJD 2.0-4.5	3000*2000mm	4.5m	2t	4kw
	RSJD 1.0-5	2000*1500mm	5m	1t	3kw
	RSJD 2.0-5	2800*1600mm	5m	2t	4kw
	RSJD 3.0-5	3000*2000mm	5m	3t	4kw
	RSJD 5.0-5	3000*5000mm	5m	5t	7.5kw
	RSJD 2.0-8	2500*2000mm	8m	2t	4kw
	RSJD 2.0-10	2000*1500mm	10m	2t	4kw
	RSJD 3.0-12	2500*2000mm	12m	3t	5.5kw
	RSJD 2.0-14	2000*1500mm	14m	2t	5.5kw
	RSJD 2.0-16	2000*1600mm	16m	2t	5.5kw
	RSJD 2.0-18	3000*2200mm	18m	2t	7.5kw

3. PRODUCT FEATURES
4. OPTIONAL FEATURES

5. Application &PACKAGING & SHIPPING * Package: Wooden case Package or as required
Application lift: Widely used -in factories, warehouses, industrial plants, institutions-anywhere that products or supplies need to move from one level to another. Electric lift provides fast, efficient,convenient and safe access to mezzanines, balconies, basements, and any levels in multistoried building. It can be installed indoor and outdoor applications.
