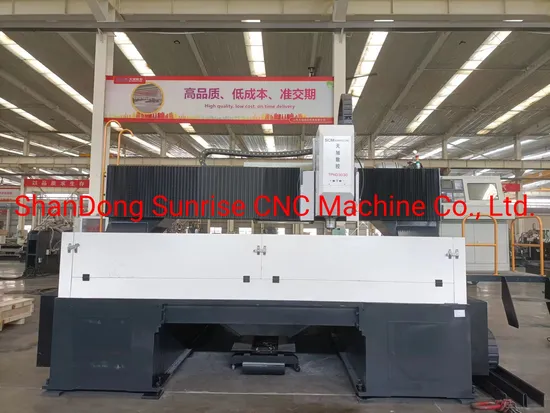

TPHD3230-1 CNC One- Spindle Gantry Movable High-Speed Drilling Machine

Product Description

Applicable Industry: This machine is mainly used for drilling and milling of steel plate in the steel structure industry such as building, bridge, iron tower, etc., and can also be used for drilling and light milling of tube plate, baffle plate and circular flange in boiler and petrochemical industry. It is used for drilling through hole, blind hole, ladder hole, chamfering and milling. Maximum processing range is 2000 x 1600mm.

Specification:

Model		TPHD3230-1
Max. size	L X W	3200X3000mm
Max thickness		250mm
Work table	Width of T slot	28 mm
Vertical slide type drill head	Quantity	1
	Main spindle taper hole	BT50
	Max drill diameter(common carbon steel)	φ40mm(carbide drill)
		φ50mm(high speed twist drill)
	Main spindle speed	30-3000r/min
	Motor power of spindle	22kW
(X axis) Gantry longitudinal move	Max. stroke	3200mm
	Moving speed of X axis	0-8m/min
(Y axis) Power head transversal move	Max stroke	3000mm
	Moving speed of Y axis	0-8m/min
(Z axis) Vertical slider feeding	Stroke of Z axis	500mm
	Feeding speed of Z axis	0-5m/min
Positioning accuracy	X/Y axis	≤0.08mm/ Full length
Repositioning accuracy	X/Y axis	≤0.04mm
Hydraulic system	Hydraulic pump pressure/flow rate	6.5MPa /25L/min
Pneumatic system	Compressed air pressure	≥0.4MPa
Chip cleaning and cooling	Chip cleaner type	Plate chain type
	Chip cleaner no.	1
	Chip cleaning speed	1m/min
Automatic lubricating system	Lubrication pressure	2MPa
	Lubrication point oil injecting amount	0.1mL
	Lubrication period	6-10min
Electric system	CNC system	FAGOR8055 or SIEMENS
	CNC axis NO.	4

Packing & Delivery
Packing Details : Packing, this model need 2*40HQ;
Delivery Details : 30-50 days after get the first payment.

1. Special logistics packaging
2. Suitable carton size
3. Fasten
4. Professional placement
5. Professional shock
6. Complete package
Our Workshop:
The company covers an area of more than 46000 square meters. , with built production workshop 33000 square meters.
Aftersale Service:
India and some other countries could provide to door service. For those we cannot go to factory at site, we will provide full details installation guidance and give remote support by internet (Wechat, whatsapp, zoom, telephone, email, teamviewer).
Our Certifications:
SUNRISE is focus on quality and has already passed ISO9001:2015 certification, CE certificate, also with more than ten own intellectual property rights and patent technology.
Quality Make Brand, Honesty Win Market!
Innovation Promote Development, Harmony Converage Talents.
Thanks For All Customers Believe And Choose Sunrise CNC.

---
