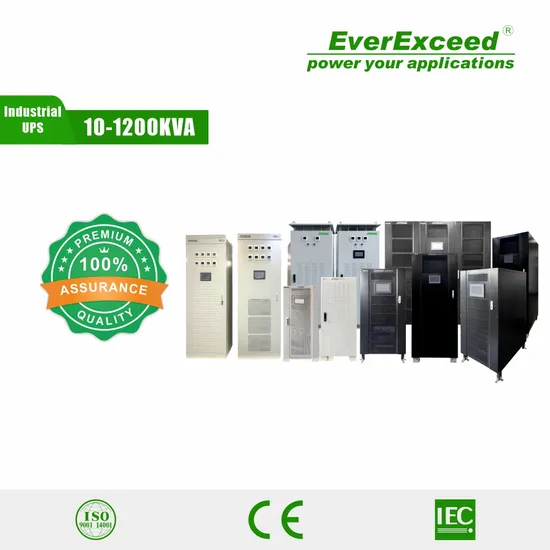

High Quality Industrial UPS 120kVA Low Frequency Online Uninterruptible Power Supply

Product Description

Over Voltage, Current, Short Circuit etc.protection EverEXceed PL3 1kw High Frequency UPS
Product Description PowerChampion Series Low Frequency Industrial UPS is a configurable uninterruptible power supply (UPS) system that offers true industrial modular architecture and maximized power performance. It combines conservative design (SCR) with battery management system and proven digital control to ensure the utmost reliability in any electrical and environmental conditions.
The system consists of rectifier / charger, inverter, static bypass, maintenance bypass, rectifier isolation transformer, inverter isolation transformer, bypass line isolation transformer, automatic line stabilizer, DC distribution, AC distribution, controls and monitoring. The AC output of the inverter is connected to the critical load, the storage battery is connected between the inverter input and rectifier / charger output through a battery isolation MCB. The normal AC input power is connected to the rectifier; the bypass circuit also takes power from the same power source to provide power for the critical load during bypass operation when the system is in maintenance mode.
1-3KVA PL3 RM Series High Frequency Online UPS
1KVA/ 2KVA/ 3KVA module, 100/110/115/120/127VAC, 1:1

PowerLead3 series power supply adopts online double conversion design and digital control technology and it features high input and output power factor, self-adaptive output frequency according to input frequency,intelligent battery management and excellent network management.
Features Features:

Adopting High-speed DSP Control	High Reliability	Advanced BMS
Adopting voltage and current stepping technology under CPU control, the rectifier of UPS has a soft start function. The input step is less than 15 seconds (adjustable), and the maximum impact current on the power grid does not exceed the rated current.	Built-in input transformer, output transformer, and bypass transformer realize complete Galvanic isolation. Instead of discrete IGBT and SCR components, we uses Modular IGBT and SCR in Rectifier and Inverter, bringing in extremely high reliability.	Intelligent battery management, comprehensive charge and discharge management of batteries, including charging voltage and current limiting, discharge cut-off voltage, extending battery lifetime 30%-50%
Flexible customization	Integrated design	Strong Impact Ability
Industrial UPS can be customized according to the customer's environment, including input and output voltage, phase, frequency, battery voltage, charging current and IP level of the cabinet, etc;	the entire machine adopts a less fuse design, using circuit breakers, contactors, and electronic static switches. The circuit protection technology is advanced, greatly improving the reliability of the entire machine.	Adopting pulse-by-pulse technology to ensure that the maximum short-circuit current does not exceed the allowable range of single pulse short time IGBT, a pulse-by-pulse current limiting scheme is adopted.
Suitable for harsh environments	Parallel operation	High compatibility
It can be applied in harsh environmental conditions such as dust, pests, high-temperature conditions, and earthquake areas to protect your important production processes and systems.	Advanced distributed active parallel technology can realize parallel operation of 6PCS UPS units without the need for centralized bypass cabinet.	Compatible with Lead Acid ( vented/sealed) , NiCd (vented/gas recombination) batteries and lithium batteries.

Detailed Photos
Technical specifications: Power Champion Series

GENERAL
Model	PW10-PW1200
Capacity	10kVA-1200kVA
Topology	Double Conversion Online System with Output Isolation Transformer
Control	Microprocessor Controlled System
RECTIFIER
Isolation Transformer (OPTIONAL)	Galvanically Isolated
Nominal Input Voltage	110 VAC /208 VAC / 220 VAC / 230 VAC / 240 VAC / 380 VAC / 400 VAC / 415 VAC / 480 VAC ±15%(1 phase or 3 phase)
Nominal Input Frequency	50Hz / 60Hz ±5%
Input PF	≥ 0.8 Inductive (6 Pulse) ≥ 0.9Inductive (12 Pulse) ≥ 0.95 Inductive (12 Pulse with active harmonic elimination)
Total harmonic Distortion (THDi)	≤ 30% (6 Pulse), ≤ 10% (12 Pulse), ≤ 5% (12 Pulse with active harmonic elimination)
BATTERY
Nominal DC Voltage	110 VDC / 125 VDC / 220 VDC / 230 VDC / 240 VDC / 360 VDC / 384 VDC / 432 VDC / 480 VDC
Battery Charging Principle	Constant Current / Constant Voltage
Boost Charge Voltage (V/Cell)	2.4 Lead Acid Battery 1.60 NiCd Battery (Based on battery brand and type)
Float Charge Voltage (V/Cell)	2.23 Lead Acid Battery 1.40 NiCd Battery Based (Based on battery brand and type)
INVERTER
Topology	3 Full Bridge 6 high Frequency IGBT Inverter Modules (3 Phase); 1 Full Bridge 2 high Frequency IGBT Inverter Modules (1 Phase)
Isolation Transformer	Galvanically Isolated (standard)
Power Factor	0.8 / 0.9
Nominal Output Voltage	110 VAC /208 VAC / 220 VAC / 230 VAC / 240 VAC / 380 VAC / 400 VAC / 415 VAC / 480 VAC ±15%(1 phase or 3 phase)
Voltage Tolerance Static	± 1%
Dynamic with 100% load change	± 10% in 50 msec.
Overload	100%-110%, 5 hours 110%-125%, 10 min 125%-150%, 1 sec
Waveform	Pure Sinusoidal
Total harmonic Distortion (THDv)	< 3%, at linear load <7%, at non-linear load
Crest Factor	3 : 1 (1 second)
Nominal Output Frequency	50 Hz / 60 Hz ±0.1%
Switching Frequency	16 kHz/ 8kHz /4kHz(Different power, Different frequency)
STATIC BY-PASS
Topology	Uninterruptible static switch with back-feed protection
Bypass System	No break semiconductor thyristor - thyristor
Isolation Transformer (OPTIONAL)	Galvanically Isolated
Nominal Frequency	50/60 Hz ± 2%
Inverter/Bypass transfer time	Inverter failure: Max. 5 msec. Overload or manual transfer: 0 msec. Bypass/Inverter transfer time: <4 msec.
MECHANICAL BY-PASS
Topology	Make before break mechanical switch with locking system
SYSTEM
Efficiency	AC Mode: 90% Battery Mode: 92% ECO Mode: 99%
MCCB and Fuse	Input MCCB, Output MCCB, Battery Fuse, Bypass MCCB, Maintenance bypass MCCB, Battery MCCB (Optional) (Small capacity UPS using MCB)
Measurements	LCD Display for Line Voltage / Frequency / Current ,Battery Voltage / Current, Battery SOC , Output Voltage / Frequency / Current
Protections	Input: Input High Voltage, Input Low Voltage, Input Frequency Failure,Phase Sequence Fault (3 Phase),Soft Start, Over Temperature Protection Battery: L-C filters, charge current limited Output: Short Circuit Protection, Over Voltage Protection, Under Voltage Protection, Over Current Protection, Over Temperature Protection
LCD Alarm	Disturbances on bypass line, By-pass manual, Maintenance bypass MCCB close, Cable defect in parallel, Bypass votlage failure, Bypass MCCB open, SCR fuse failure, Mains voltage failure, Input frequency error, Input MCCB open, Battery Low voltage, Battery discharge, Battery MCCB open, Output overload, Internal fault (Including auxiliary power supply, IGBT, SCR and other internal circuits)
Alarm contacts	Low Battery, Mains Input Normal / Failure, Charger Failure, Overtemperature, Charger Overvoltage, Load MCB ON/ OFF, Battery MCB ON / OFF, Earth Fault(OPTIONAL);
Adjustable Parameters	Battery number, Boost Charge Voltage, Float Charge Voltage, Battery Charge Current, Battery Ending Voltage, Password; UPS Mode (UPS, ECO, Bypass Inhibit), DC Cut off, Low Battery Level, Output Voltage Adjustment, Auto Start ON/OFF, Date, Alarm Sound ON/OFF, Password
Communication	RS 485 / RS 232(standard) /(OPTIONAL) Ethernet Ports, Modbus, Profibus, SNMP, TCP/IP
Paralleling (OPTIONAL)	Parallel Redundancy
SAFETY & ENVIRONMENT
Electrical Standards	IEC 62040-3 (Performance), EN 50091-1 (Security) / EN 50091-2 (EMC)
Over Voltage Protection	IEEE 587 4500 A, 110 Joules (standard) / 40kA Surge Arrestor (OPTIONAL)
Electrical Interference Reduction	FCC Part 15 Class B
Protection Level / Color	IP 20 / RAL 7035 (Standard), (Higher IP rating and different colors are available, please consult)
Enclosure Material	Mild Steel, Cold rolled steel plate spray coating, galvanized sheet; 1.2 mm thickness
Cooling	Forced Fan (Standard)
Cable Entry	Bottom (Standard) / Top (OPTIONAL)
Heater & Lighting	OPTIONAL
Distribution	OPTIONAL
MTBF	200,000 hrs. (without battery group)
Operating Temperature	-10 / +40 °C. (Higher operating temperatures are available, please consult)
Relative humidity	0 - 95 %(non-condensing)
Operating Altitude	Max. 4000 Mt. (Higher altitudes requires de-rating, please consult )
Noise Level	Max. 60 db

Customized appearance design
Applications:
EverExceed Industrial UPS Systems are widely used in different industries such as Power Generation, Power Distribution, Power Transmission, Manufacturing, Transportation, Mining, Refining, Petrochemical Plants, Oil & Gas, Hospitals, and Airports with different applications such as Gas Turbine Control, Switchgear tripping, Signalling, Alarms, Emergency Lighting, DCS (Distributed Control System), etc.
Certifications
Our factory

Why us?
Reasons you would prefer to buy this power supply products from us
Service	RMA(24/7 pre-sales and after-sales support),OEM,ODM
Quality	Highly reliable quality guaranteed by Varta production equipment, German technology, European raw materials
Warranty	Standard 2 years, 5+ years upon request
Price	Competitive factory Price! Cut down the cost you paid to the middle man
Professional	Founded in 1985, 30+ years battery manufacturing experience
Production capacity	3,500,000KVAh per year
Reliable	Two R&D centers; Three major production bases; Global 500+ dealers/ agents; Global 100+ offices; Business coverage 65+ countries around the world

Shipping & Payment
Payment	T/T, L/C , Cash, Western Union etc.(flexible payment term can be discussed)
Port	Normally Shenzhen China (any sea port upon request)
Delivery	By sea/air/trian/truck transportation
Delivery time	Normally 4 weeks ex factory excluding shipping.
Packing:	Pack in carton box then pallet (wooden box)

FAQ 1. Price terms:
We always offer best prices to our clients, base on differenct quantity, you'll get special extra discount as well.
2. MOQ terms:
MOQ is not strictly required, minimum 1unit also welcome. The larger quantity, the better prices you'll get.
3. Brand terms:
We're practical in engineer, welcome to custom your own brand/logo, or use our brand EverExceed.
4. Payment terms:
Usually accept T/T, 50% deposit and balance 50% before shipment.
5. Lead time:
7-14 days for samples, 20-30 work days for bulk orders.
6. Month Capacity:
It depends on which model, small capacity models reach to 20000pcs and big capacity near 3000pcs.
7. Warranty polocy:
Standard warranty 1 year, 2-5 years optional, prices will different.
8. Certification:
Our company already achieve ISO, CCC, and for products, we have CE, SONCAP, GOST .
9. Shipment:
Small quantity usually send by Express like DHL/FedEx/UPS, hundreds weight send by Air, bulk orders send by sea.

---
