Construction Passenger Hoist and Materials / Goods Hoist Driven in Rack and Pinion Hoist

Product Description

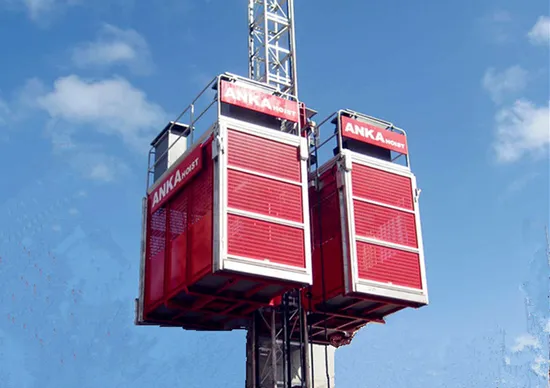

Construction Passenger hoist and Material / goods Hoist Driven in Rack and Pinion Passenger Hoist
Description:
ANKA provides a whole serial passenger and material hoist in both single and twin cage to the customers, the capacity of cage ranges from 1000kg, 1200kg, 1500kg, 2000kg, 2700kg, to 3200kg, and with direct motor driven and frequency conversion driven to reach the speed of 36 m/min, 40 m/m, 63m/min and 96m/min, the maximum working height is up to 450 meters. And ANKA also provides the customized size of cage to satisfy the special demand from customers.
The electric components and the frequency converter are from International famous brand, bearing from SKF, Terminators from Phoenix. ANKA also provide the Germany Nord / SEW motor and gearbox for our customer's specific requirement.
With the advance facilities and skills, clean and environment-friendly workshop, ANKA manufactures the reliable, safe and high performance construction machinery and provide the high efficient vertical access solution for the global customers.
Applications:
Building construction, Residence construction, Bridge construction, Power station construction, Dam construction, Miner project, and etc.
Competitive Advantage:
International standardized design and production
High level quality control system
Reliable quality and very good finishing
Minimum maintenance job and cost in usage
Specifications:

Model	Capacity (kg)	Lifting speed (m/min)	Motor power (kw)	Inverter power (kw)
SC200TD	2000	36	3 x 11	N
SC200GD	2000	0-40	3 X 11	37
SC200GZ	2000	0-63	3x18.5	55
SC270GZ	2700	0-63	3x18.5	75
SC200G	2000	0-96	3x22	90
SC270GS	2700	0-96	3x30	110
SC120/120GZ	2x1200	0-63	2x3x15	2x45
SC200/200GZ	2x2000	0-63	2x3x18.5	2x55
SC270/270GZ	2x2700	0-63	2x3x18.5	2x75
SC200/200G	2x2000	0-96	2x3x22	2x90

---
