Small Sample Warping Machine Special Design For Sample Weaving In Lab Or Research And Development Institute

Product Description

Product Description

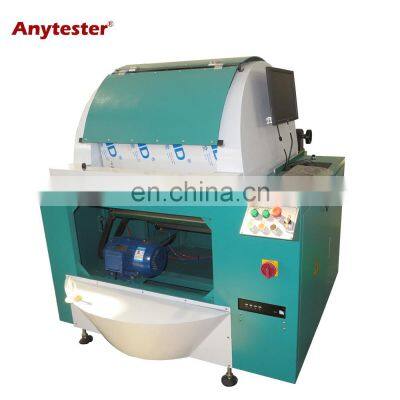

Product DescriptionAT241B Small Sample Warping Machine is used for automatic warping of production sample, weaving sample and small batch fabrics for lab. As the textile develops in the direction of small quantity, diverse kind and prompt delivery, so our company has developed AT241B Small Sample Warping Machine on the increasing requirements on product samples. It is widely used in the sampling in the industries including wool spinning, cotton spinning, colored woven and natural silk etc.Specification Model AT241B Warping width 0~500mm Warping speed 0~500m/min Warping length 2.4m or 3m Applicable yarn density 5~500tex Number of bobbins 1pcs (manually changeable) Yarn arrangement Servo motor control with accuracy of 0.01mm reachable Applicable warp beam diameter ¢60mm Applicable warp beam length 300~500mm Air pressure required 0.4~0.8Mpa Air consumption Max. 200L/h Power supply AC380V 50Hz, three-phase Dimensions 1700×1000×1300mm(L×W×H) Weight Approx.850kg Detailed Images★ PC Control And Software For Arranging The Laying Of Ya rn★ Special design for sample weaving in lab or research and development institute; ★ Adjustable working space of unwinding device, suitable for various warping beams whose length is within 300~500mm;★Yarn breaking detector;★ Foot pedal for unwinding; ★ With inching button and emergency stop for the safety of operator; Packing & Delivery Packaging Size(cm) 170(L) * 100(W) * 130 (D) Weight 850Kg Packaging Details 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Payment Payment Item T/T EXW 30% T/T in advance,paid the balance before the payment FOB CFR(C&F) 30% T/T in advance,paid the balance again the copy of L/C CIF L/C L/C amount abve 50,000 usd, we can accpet L/C at sight West Union Amount lower than 50,000 USD Delivey Time 7~10days after receiving payment for one containerRelated Products AT241C Automatic Single Yarn Warping Machine AT246A Semi-Automatic Sample Loom AT247 Automatic Air-Jet Sample Loom AT248 Automatic Rapier Sample LoomOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productContacting Us ERIC QIN Website Mobile Phone +86 188 5510 5986 Whatsapp +86 188 5510 5986 Skype eric-qlk Wechat +86 188 5510 5986

---
