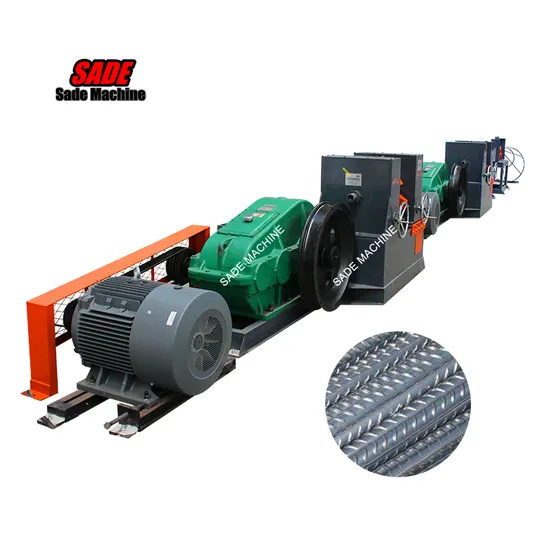

High Production Cold Rolled Ribbed Wire Rod Making Machine

Product Description

Product Description
Cold rolled ribbed steel bar making machine supplier
rebar making machine is a kind of machine use for rolling coil wire from big diameter to small diameter, out put can be ribben type or round type.
Input diameter could be special making according your local rod material.
This Machinery to manufacture Cold Rolled Ribbed Deformed Wire in diameters 3.5 mm to 12 mm,Complete set of machinery offered including main Ribbing Machine and auxiliary machines like: Wire Drawing Machines, Wire Pointing Machine, Butt Welding Machine, Descaling Machine, Electric Control Panel Board, Automatic Wire Straightening and cutting Machine,roll wire machine ...

Model	15000T	20000T	30000T
Power	37.5KW	66KW	80KW
Max input wire diameter	13.5mm	14mm	14mm/16mm
Output wire diameter	4-12mm	4-13mm	4-14mm
Speed	75m/min	120m/min	150m/min
Control way	Inverter	Inverter	Inverter
Ribbed machine type	150	180	180
Recoiler	1T	1T	1T/2T
Weight	4T	6T	7.5T
Working dimension	16-20	16-20	16-20

♦Quality CNC machinery ribbed steel wire cold rolled machine machine is the most developed machine with compact structure, small footprint.
♦ Quality CNC machinery ribbed steel wire cold rolled machine is featured by small size, short-distance recycling winding and high capacity.
♦ Gearbox Reducer of cold rolling ribbed steel bar is large torque, low noise, durable.
♦ Advanced frequency inverter technology can save 40-60% power.
♦Pure steel mill fundary and no cracking.


Company Information
Packaging & Shipping


Our Services


♦ 24 hour technical support by e-mail and online
♦We offer installation and train the workers for the customers.
