Product Description
Product Description

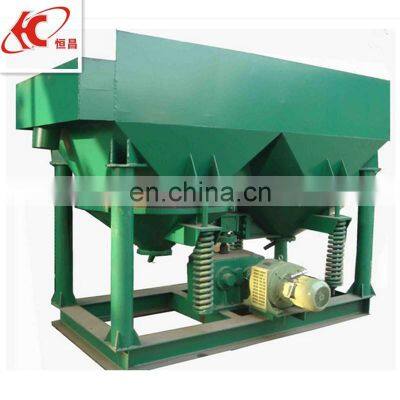

Product description ModelJig RoomStroke CoefficientSeptumInput Size(mm)Capacity(t/h)Water Consumption(t/h)Power(kw)Weight(kg) Area(m2)RawRoomTotal Area(m2) Stroke(mm)Times(mm) LTP-34/20.135120.270.580-25320-420122-64-101.1800LTA-1010/21.0122.00.50-25250-35055-1510-202.22890LTC-69/20.54121.080.550-50220-35086-940-601.514202LTC-366/8T0.2-0.34282.160.68-0.410-50120-30053-620-401.1x235702LTC-6109/8T0.58-0.86285.760.52-0.350-50120-300510-2080-1202.2x24650AM-300.644222.5740.470-501303010-15100-15032400Jig machine is a deep groove in the selection equipment.All jig machines have jig machine Chambers.An operating mechanism and a product discharge mechanism that incites the flow of water.Jig machine room screen plate is made of perforated steel plate, woven iron mesh or grid. Water flow into jig chamber through the screen plate should make the bed layer rise not high and slightly loose, the high-density particles will enter the bottom layer due to the local pressure and sedimentation speed, and the low-density particles will transfer to the upper layer.When the water flow drops, the small particles with large density can also enter the lower layer through the gradually close bed gap. In the early years, the mechanism that supplements the water flow movement by the stratification of density adopts piston. The piston chamber is located at the side of jig chamber, and the lower part is connected, and the piston moves up and down by the eccentric linkage mechanism.Main Features:(1) The ore particles are mainly layered by specific gravity in the jig machine. The jig machine can not only sort the narrow grade of ore, but also effectively sort the wide and non-graded ore. (2) In the jigging process, the higher the specific gravity of the medium, the greater the difference in specific gravity between the ore particles, the higher the sorting efficiency. (3) Maintaining the bed with the necessary looseness is a prerequisite for stratification. If the bed is not loose enough, the ore particles are difficult to transfer to each other and thus the possibility of delamination is lost. Therefore, in the jigging process, the bed is in a loose state as much as possible to improve the processing capacity of the jig and improve the sorting effect. (4) The influence of the size and shape of the ore particles on the stratification mainly occurs during the period of relative movement between the ore particles and the medium. Therefore, when sorting non-grading materials, the period of relatively large moving speed should be shortened as much as possible during the jigging period and the period of relative motion speed should be extended to keep the bed tight. (5) The rising water flow should have a large positive acceleration and a small negative acceleration; the descending water flow should have a small positive acceleration and a large negative acceleration. (6) The inhalation effect of the descending water flow is an aspect of the jigging layer, which can improve the jigging effect of the narrow-level and non-graded ore particles, but the strength and duration of the inhalation action should be selected according to the nature of the raw material. (7) When hopping fine-grained ore, increasing the frequency of water flow movement in the jig machine can improve the sorting effect. (8) Adding some high-specific gravity fine ore particles to the bed layer can improve the jigging effect of the non-classified ore, but the jig machine must be re-adjusted to enhance the inhalation.
>>
