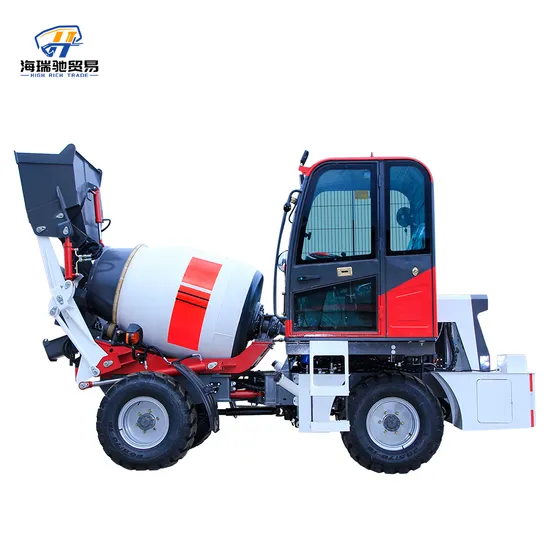

0.7m3 Portable Diesel Mini Small Cement Truck Mixer for Sale

US$5,500.00-9,860.00 1 unit (MOQ)

Basic Info.

Model NO.
HR 0.7cbm
Condition
New
Mixing Capacity
>=0.9cubic Meter
Warranty
1 Year
Emission
Euro II
Wheelbase
2180mm
Total Weight
4500kg
Engine
Yunnei490 Supercharged
Power
55kw
Gearbox
265integral
Drive Axle
1.8t Wheel Side Deceleration Bridge
Tires
20.5-16
Bucket Capacity
0.35 Cubic Meter
Reduction Ratio
1:24
Rotating Speed
>=15 Laps/Minute
Axle Number Traction Type
4*4
Reducer
Made in China
Brand
Highrich
Transport Package
40 Hq Container
Specification
5050*2350*3500mm
Trademark
HIGH RICH
Origin
China Shandong
HS Code
8705400000
Production Capacity
2000 Units/Year

Packaging & Delivery

Package Size
3850.00cm * 1850.00cm * 2600.00cm
Package Gross Weight
3500.000kg

Product Description



This HIGH RICH type mixer truck has realized the complete automation of the concrete production process for the first time. It can automatically complete the major production tasks of batching, production, unloading and transportation. The daily concrete output of automated production can reach 200 cubic meters, which is especially suitable for medium-sized enterprises. Used for small projects.
Loader + Mixing truck + Transport truck = 1 Self loading Concrete Mixer Truck
1.Concrete mixer truck with automatic feed and water supply. The latest technology saves time and effort. 2.The mixer truck with full hydraulic torque
converter.180°Rotary discharge. 3.Steel wire tyre,Vibrator and camera(Real-time attention Vision blind area). 4.Manganese steel material, quality assurance.
Overall Parameter
Model HR1000L
Dimension (L×W×H) 3800*2100*2500mm
Weight 3500kg
Performance
Mixing Drum Capacity Drum Capacity 1000L,Concrete Output: 0.7m³ Per Batch
Production Speed Production speed: 7tanks/h
Traveling Speed Low Speed: 0-25km/hour / High Speed: 0-40km/hour
Drum Rotation Horizontal rotation 270°
Transmission Type 4*4
Water Tank Capacity 500L
Diesel Tank Capacity 60L
Hydraulic Oil Tank Capacity 60L
Gearbox 265integral
Drive axle 1.8T wheel side decelerationbridge
Tires 20.5-16
Bucket capacity(m3) 0.35
Mixing capacity(m3) ≥0.9
Reduction ratio 1:24
Rotating speed(laps/minute) ≥ 15 laps/minute
Reducer Made in China
Gradeabiliy 30°
Engine
Model Yunnei490supercharged
Manufacturer Yunnei
Rated Power 55kw
Emission standards Euro II
