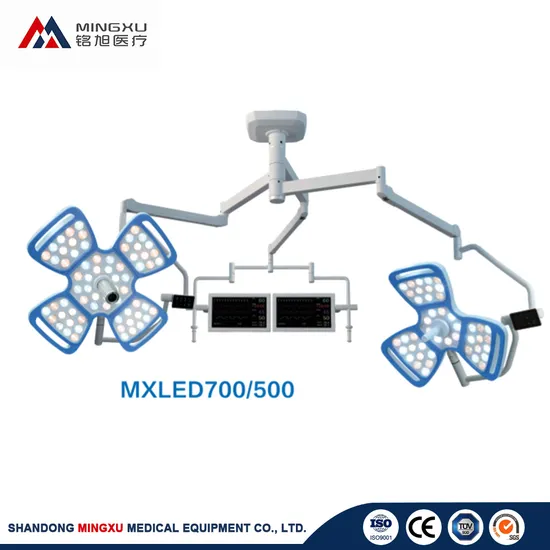

Operating Room Equipment Medical Operation Theatre Light Shadowless Lamp Surgical Light

Product Description

Product Specifications

Lamp head model	MXLED 700	MXLED500
Number of lamp beads	68	68
Center Illuminance(LUX)	110000-160000 (10 levels adjustable)	110000-160000 (10 levels adjustable)
Color Temperature(K)	3500-5000 (6 levels adjustable)	3500-5000 (6 levels adjustable)
Color Rendering Index (Ra)	≥96%	≥96%
Spot diameter (mm)	150-300	150-300
Light beam depth (mm)	≥1200	≥1200
Irradiance(W/m2)	≤400	≤400
Head temperature rise(ºC)	≤1	≤1
Temperature rise in the surgical working area	≤2	≤2
Operating radius(mm)	≥2200	≥2200
Working radius(mm)	600-1800	600-1800
Supply voltage	220V±22V 50HZ±1HZ	220V±22V 50HZ±1HZ
Input Power	150VA	150VA
Average life of lamp(h)	≥60000	≥60000
Lamp power	1W	1W
Optimum installation height(mm)	2800-3000	2800-3000

Product Configuration List

Number	Name	Quantity	Remark
1	Base	1
2	Cross arm	2
3	360° Balance Arm	2
4	Lamp holder	2
5	700 lamp holder lamp beads	136
6	Handle	2	2 extra
7	Hexagon wrench s=3,s=4,s=5,s=6,s=8	1 each
8	Small flat screwdriver	1
9	Phillips screwdriver	1
10	Certificate	1
11	User Manual	1
12	Product warranty card	1

FAQ Q: Are you manufacturer ?
A: Yes,Mingxu Medical is located in Qufu, Shandong Province, with a research and development center of more than 5,000 square meters and a standardized production workshop of more than 20,000 square meters,we have our own R&D team and sales team,We provide you one-stop service.
Q: Do you have CE,ISO13485?
A: Yes,our products are approved by CE,ISO13485
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
2.All of the productions are inspected carfully by QC before delivery.
Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is5-10 days after receiving the deposit; If we don't have the products in stock, we will arrange the production right now, the delivery time will be 20-30days,It depends on the quantity of order
Q: What is your Min.order?
A: 1set

---
