Basic Info.
Production Capacity
5000pieces/Year
Product Description

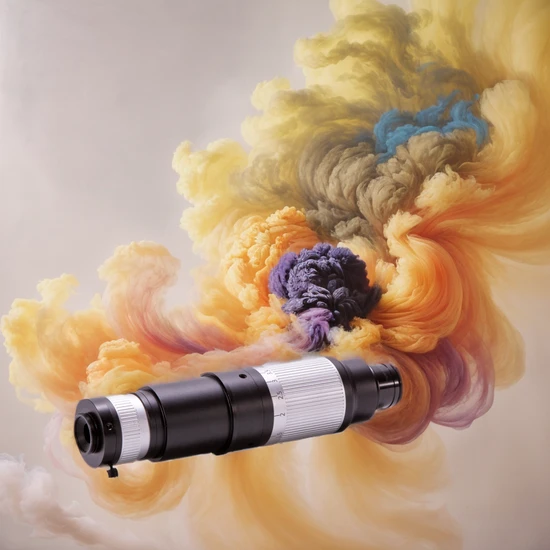

MSS-0330 Full HD 4K Apochromatic Continuous Zoom Lens
Welcome to Shanghai Mss International Trade Co., Ltd.
Introducing the MSS-0330 Full HD 4K Apochromatic Continuous Zoom Lens!
Are you looking for a lens that can take your imaging experience to the next level? Look no further! Our MSS-0330 lens is here to revolutionize your visual analysis and automatic intelligent calculation.
With its apochromatic optical system and 4K ultra-high definition imaging, this lens greatly enhances your judgment ability and provides crystal-clear images. Say goodbye to blurry visuals and hello to precise analysis!
What sets our MSS-0330 lens apart from traditional lenses is its impressive magnification field of vision. At the same magnification, it offers more than 1.5 times the field of vision compared to traditional lenses. You won't miss any details with this lens!
Our lens features a modular design, allowing you to customize its functionality according to your needs. Whether you require coaxial lighting, a cancelling objective lens, or an objective lens converter, we've got you covered!
Thanks to its apochromatic aberration principle, the MSS-0330 lens delivers perfectly clear images without the need for refocusing under different wavelength illuminations. It's the ideal choice for various applications, including food detection, silicon chip analysis, electronic component research, and biology studies.
With a 1:10 large zoom ratio, the MSS-0330 lens offers a standard body with a 0.3-3.0X magnification range. You can easily match it with different magnification interface and objective lenses to expand your magnification options. Check out the table below for more details:
Magnification Interface Objective Lens
| 0.3-3.0X | Standard Body | Various options available |
Experience the power of our MSS-0330 Full HD 4K Apochromatic Continuous Zoom Lens and unlock a new level of visual clarity and precision. Upgrade your imaging capabilities today!
Parameters
| Model | MSS0330 |
| Magnification | 0.3X | 0.5X | 1.0X | 2.0X | 3.0X |
| Focus distance(mm) | 27 | 45 | 90 | 180 | 270 |
| Working distance(mm) | 100 | 100 | 100 | 100 | 100 |
| Depth of field(mm) | 5.80 | 2.16 | 0.63 | 0.22 | 0.12 |
| NA(mm) | 0.023 | 0.037 | 0.063 | 0.090 | 0.107 |
| Resolution(mm) | 0.015 | 0.009 | 0.005 | 0.004 | 0.003 |
| F/# | 6.5 | 6.8 | 7.9 | 11.1 | 14.0 |
| Dist% | 3.90% | 1.90% | 0.55% | -0.04% | -0.23% |
| CCD | 2/3" | 2/3" | 2/3" | 2/3" | 2/3" |
| Mount | C | C | C | C | C |
| F/# | 21.7 | 13.5 | 7.9 | 5.6 | 4.7 |
| Model | Zoom body | C mount | Objective | magnification | WD |
| MSS0330 | 0.3-3.0X | 1X | 1X | 0.3-3.0X | 100mm |
| MSS0550 | 0.3-3.0X | 1.67X | 1X | 0.5-5.0X | 100mm |
| MSS0990 | 0.3-3.0X | 3X | 1X | 0.9-9.0X | 100mm |
| MSS10100 | 0.3-3.0X | 3.33X | 1X | 1.0-10X | 100mm |
| Customized magnification |
| MSS0440 | 0.3-3.0X | 1.33X | 1X | 0.4-4.0X | 100mm |
| MSS0660 | 0.3-3.0X | 2X | 1X | 0.6-6.0X | 100mm |
| MSS0770 | 0.3-3.0X | 2.33X | 1X | 0.7-7.0X | 100mm |
| MSS0880 | 0.3-3.0X | 2.67X | 1X | 0.8-8.0X | 100mm |
>>
