Touch Screen

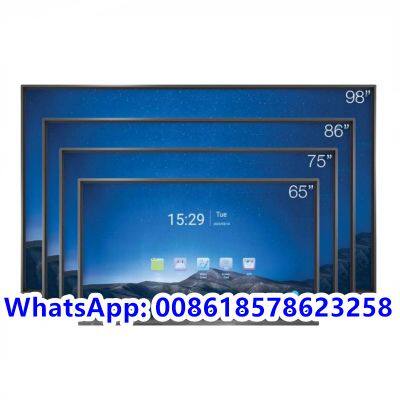

| Display Size: 55/65/75/86/98/100 Inch.
|
Ratio: 16 : 9
|
Max Resolution：3840*2160 RGB.
|
Brightness: ≥350CD/㎡
|
Contrast Ratio: 1200:1
|
Responding Speed: 4 ms
|
Front Serial Port: Power, Anti-Glare, Screen Recorded, Touch Switch.
|
Front Port: USB For Touch*1, HDMI*1, USB *3.
|
Input Port: VGA*1, VGA Audio In *1, YPBPR in *1, AV In *4， HDMI In *2 (OPS*1), USB For Touch *1, RJ45*1, USB 2.0*2.
|
Output Port: Earphone *1, AV Out *1, Spidf Out *1
|
Communication Port：RS232
|
Audio Power: 2*15W
|
Camera: 1300W / 4800W / AI Smart Camera Optional.
|
Android System
| Solution
| 311D2
| T982
|
CPU
| Cortex-73*4+Cortex 53*4 2.0GHz
| A55*4, 1.9GHz
|
GPU
| MALI-G52
| MALI-G52
|
FLASH
| 16G EMMC ( MAX128G )
| 32G EMMC
|
RAM
| DDR4 4G(MAX 8G)
| 4G DDR 3/4
|
WIFI
| 2.4G Wireless Network, Network, Bluetooth.
|
Version
| Android 8，9，10，11，12，13
|
OPS System
| Windows 7/ Windows 10
|
Touch Panel Specification
| Touch Screen:
| 20 Point Infared Touch Screen.
|
Ratio:
| 32767*32767
|
Port:
| RS232 or USB.
|
Response Speed:
| 10 ms.
|
Accuracy:
| ±1mm.
|
Perfrom System:
| Windows 7/ Windows 8 / Windows 10 / Android
|
