Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Way Toolpost
Controlling Mode
Artificial
Certification
GS, CE, RoHS, ISO 9001
Name
Spindle Bore 38mm Cq6230A Small Manual Bench Lathe
Distance Between Centers
750mm
Tool Post Type
4-Way Toolpost
Taper of Spindle Bore
Mt5
Transport Package
Wooden Case
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
193.00cm * 76.00cm * 153.00cm
Package Gross Weight
540.000kg
Product Description

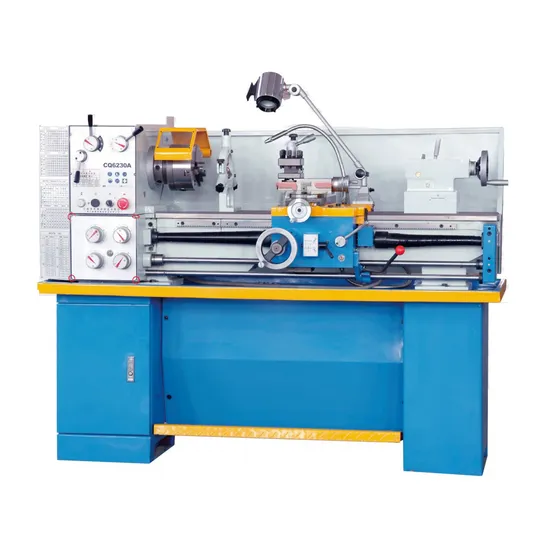

Horizontal High Quality Small Metal Mini Turning Lathe Machine CQ6230A
Model
| CQ6230A
|
Max.swing over bed
| 310mm
|
Max.swing over cross slide
| 180mm
|
Max.swing in gap
| 450mm
|
Max.length of workpiece
| 750/910/1000mm
|
Width of bed
| 181mm
|
Spindle bore
| 38mm
|
Taper of spindle Bore
| MT5
|
Spindle speed range
| 65-1810(1400)rpm
|
Cross slide travel
| 130mm
|
Compound rest travel
| 75mm
|
Lead screw thread
| 8 T.P.I. or 3mm pitch
|
Cutting tool Max. section
| 16x16mm
|
Metric thread can be cut
| 0.4-7mm
|
Inch thread can be cut
| 4-60 T.P.I
|
Range of longitudinal feeds
| 0.0527-1.2912mm/rev
|
Range of cross feeds
| 0.011-0.276mm/rev
|
Quill travel
| 100mm
|
Quill taper
| MT4
|
Main motor power
| 1.5kw
|
Coolant pump power
| 40W
|
Packing size
| 1930x760x1530mm
|
N.W./G.W.
| 540/645 kg
|
TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units.
Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.
>>
