Factory Mobile Jaw Crusher Portable Diesel Stone 300mm Jaw Crushing

US$6,620.00
1-14 Pieces
US$6,520.00
15-19 Pieces
US$5,520.00
20+ Pieces

Basic Info.

Model NO.
HTJC430
Drive
Hydraulic
Feed Size
150mm-299mm
Jaw Plate Material
Carbon Steel
Object
Limestone
Engine
Gasoline, Diesel
Travel Speed
0-3 (Km/H)
After-Sales Service
1 Year Free Part
Package Gross Weight
1800 Kg
Transport Package
Packing in Wooden Cases or Iron Racks
Specification
3200*1000*1600 mm
Trademark
HighTop
Origin
Shandong, China
Production Capacity
500

Packaging & Delivery

Package Size
210.00cm * 100.00cm * 175.00cm
Package Gross Weight
1800.000kg

Product Description

Product Description

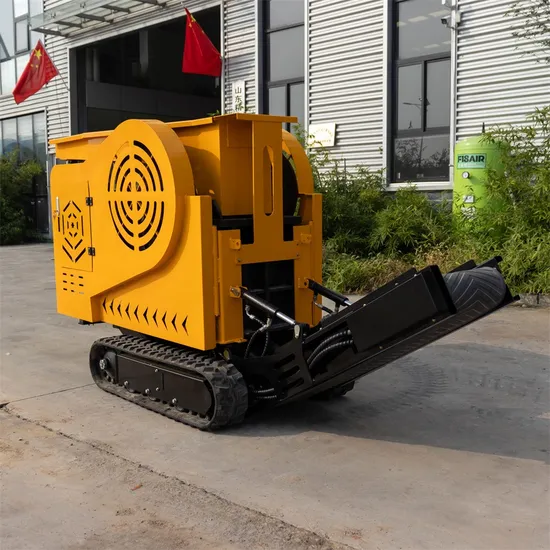

HTJC430 High-Efficiency Jaw Crusher for Robust Crushing Performance
This jaw crusher is designed with advanced crushing technology, offering high performance in processing a variety of materials.
t is ideal for primary crushing in industries such as mining, construction, and metallurgy. The compact structure ensures stable
operation, making it a reliable choice for handling large blocks of ore and providing a high output while minimizing maintenance
costs.
Detailed Photos
Product Parameters
Equipment Parameters
Working Dimensions (mm): 3200×1000×1600
Internal Width of Stand (mm): 380
Transport Dimensions (mm): 2150×1000×1750
Overall External Width of Shield (mm): 960
Track Model (mm): 180×72×41
Diameter of Support Wheel (mm): 126
Number of Support Wheels (sets): 6
Feed Opening Dimensions (mm): 220×350
Max Feed Size (mm): 200
Bin Capacity (m³): 0.4
Stacking Height (mm): 700-1150
Feeding Conveyor (mm): 1500×500
Crushed Stone Range (mm): Diameter 15-50
Walking Speed (km/h): 0-3
Track Specifications: Rubber Tracks
Production Capacity (T/h tons/hour): 2T-10T/h
Conveyor Belt Width (mm): 400
Operating Mode and Main Accessory Parameters
Equipment Operation Mode: Manual Hydraulic Valve
Walking Mode: Hydraulic Powered Crawler
Walking Motor Model: 6K-395
Continuous Torque (N.m): 850
Hydraulic Pump Specifications: PGP5108
Conveyor Motor Model: BMER-300
Conveyor Lifting Mode: Manual Hydraulic Lift
Jaw Crusher Lubrication Mode: Grease
Track Tension Adjustment Mode: Mechanical
Power System
Gasoline Engine Standard: Runtong R500-V2-18HP
Max Output Power: 13KW/3600r/min
Max Output Torque: 28N.m/2500r/min
Fuel Tank Capacity (L): 6.5
Oil Type and Quantity
Fuel Tank Capacity (L): Gasoline Engine 6.5L
Engine Oil Capacity (L): 1.0L
Hydraulic Oil Tank Capacity (L): 35L 32#/46# Hydraulic Oil
Weight: 1800KG
