Product Details
Product Description
Product Description

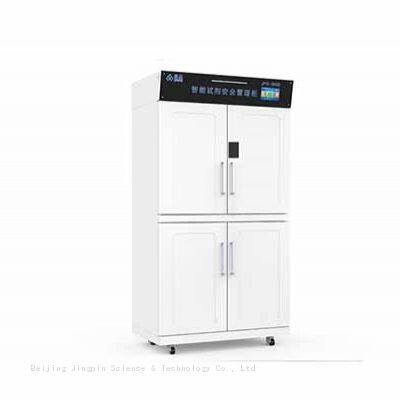

A 7-inch capacitive touch screen is embedded on the top of JPG-2000 series reagent cabinet. itis equipped with an embedded control system. The system can display the air guality in the cabinet. thetemperature and humidity status, the cabinet door not closed alamm, and the reminder for thereplacement of consumable filter.
An internal air circulation filtration system is equipped inside of the cabinet. it is used to purify theharmful gas. The cabinet door is embedded with an RFlD card swiping module, which can effectivelycontrol the double-lock card swiping process. When need to manage multiple cabinets, an optionalextemal control software is available. The control software can be loaded into the user's computer. Thecomputer can be connected to multiple cabinets to manage the entry & exit of reagents, import & exportdata to form a complete reagent information management system, which can realize the safemanagement for reagents.
Exterior size：1050*660*1995mm
Capacity：920L
Display：7-inch capacitive touch screen
Tray load capacity：≥85kg/㎡
Laminates and side panels：anticorrosive PP material
UPS Power supply：optional
Door panel：Stainless steel
Camera：optional
Temperature detection accuracy：±0.5℃
Humidity detection accuracy：±3RH(25℃)
Filter size：400*370*80mm
Lifetime of the fan：≥50000hour
Adsorption capacity：≥20kg
Power：≤100W
Air circulation：3 times/min
Jingpin provides you economical reagent cabinets JPG-2000
All steel type reagent storage cabinet feature 1: High cost-effectiveness
The prices of intelligent reagent cabinets in the market are high. For users with limited funds who want to have a cabinet with intelligent control and large storage space, JPG-2000 intelligent reagent management cabinet is the most suitable choice for you.
A 7-inch capacitive touch screen is embedded on the top of JPG-2000 series reagent cabinet. It is equipped with an embedded control system. The system can display the air quality in the cabinet, the temperature and humidity status, the cabinet door not closed alarm, and the reminder for the replacement of consumable filter.
An internal air circulation filtration system is equipped inside of the cabinet. It is used to purify the harmful gas. The cabinet door is embedded with an RFID card swiping module, which can effectively control the double-lock card swiping process. When need to manage multiple cabinets, an optional external control software is available. The control software can be loaded into the user's computer. The computer can be connected to multiple cabinets to manage the entry & exit of reagents, import & export data to form a complete reagent information management system, which can realize the safe management for reagents.
All steel type reagent storage cabinet feature 2: Full mold production
The JPG-2000 adopts anti-corrosion full mold production and manufacturing technology, which effectively reduces costs,greatly improves product consistency and manufacturing accuracy, and standardizes product structure. Interchangeability is effectively guaranteed. The height of the tray in the cabinet is flexibly adjustable and can store reagent bottles with different specifications and standards. For example, according to the interval of each layer of 10 cm, the maximum storage layer can be accumulated up to 26 layers, and can be realized adjustment of various layer height to such as 20cm, 30cm, 40cm...etc.
All steel type reagent storage cabinet feature 3: External control software can be connected
JPG-2000 can be used alone or managed by external reagent cabinet control software V2.0. The control software could be added later according to the use situation. The software can be installed in the laboratory computer, with functions such as authority classification management, abnormal situation identification, temperature and humidity monitoring, data security backup, etc. At the same time, it supports inventory query, reagent expiration reminder, minimum inventory warning setting, and can also be combined with JPG-2000 embedded system, forming a complete reagent information database, easy to realize the informatization of reagent management.
All steel type reagent storage cabinet feature 4: Diversified Choices
There are various types of chemical reagents, and in order to help users solve storage problem of different types of reagent, Jingpin has launched multiple products for users to choose from.
>>
