Best-Selling European Standard Diesel Power Tractor Mounted Farm Cultivator Tiller Rotary

Product Description

Type		1GQN-100	1GQN-120	1GQN-125	1GQN-140	1GQN-150		1GQN-160	1GQN-180	1GQN-200	1GQN-220	1GQN-250	1GQN-300
FOB(Qingdao)
Working width(mm)		1000	1200	1250	1400	1500		1600	1800	2000	2200	2500	3000
Working depth(mm)	dry land	80-140			120-180					160-180
	water land	100-160			140-200					160-200
No. of blade (pc)		22	26	26	30	34		38	50	54	58	62	66
Weight(kg)		200	215	220	230	240		250	415	420	460	480	540
Linkage		Three point mounted
Matched power(hp)		12--20	15-18	18-20	20-25	25-30		30-40	50-55	55-75	60-80	75-100	80-120

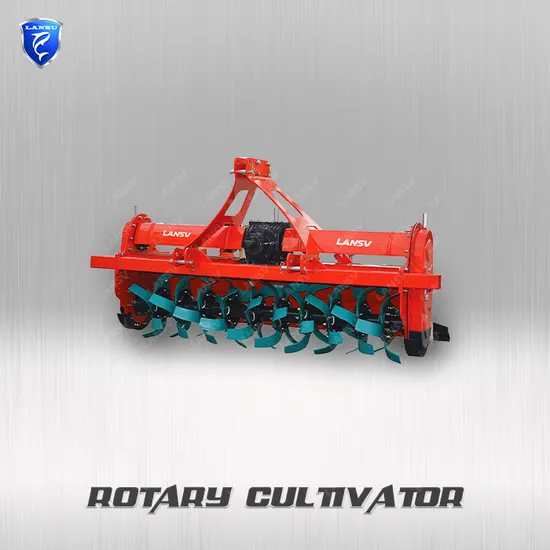

Rotary tiller adopts a side gear transmission structure and is a tillage machine tractors. The machine adopts wide tillage width
and symmetrical suspension to cover all wheel tracks. The machine has reliable quality and excellent performance, and
can be suitable for dry land and paddy field operations. It has the characteristics of grabbing time for farming, saving labor,
and low cost.
1. At the beginning of the operation, the rotary cultivator should be in the lifting state, firstly combine the power output shaft to increase the speed of the cutter shaft to the rated speed, and then lower the rotary cultivator to make the blades gradually into the soil to the required depth. It is strictly forbidden to combine the power output shaft or descend the rotary cultivator sharply after the blade enters the soil to avoid bending or breaking the blade and increasing the load on the tractor.
2. During the operation, the speed should be as low as possible, so that the quality of the operation can be ensured, the soil can be finely broken, and the wear of the mechanical parts can be reduced. Pay attention to whether there are noises or metal percussions from the rotary tiller, and observe the condition of broken soil and tillage depth. If there is any abnormality, the machine should be shut down immediately for inspection, and the operation can be continued after troubleshooting.
3. When turning on the ground, work is prohibited. The rotary tiller should be raised to keep the blades off the ground and the tractor throttle should be reduced to avoid damage to the blades. When lifting the rotary tiller, the inclination angle of the universal joint should be less than 30 degrees. If it is too large, impact noise will be generated, which will cause premature wear or damage.
4. When reversing, crossing ridges and transferring plots, the rotary tiller should be raised to the highest position and the power should be cut off to avoid damage to the parts. If it is transferred to a distant place, the rotary tiller must be fixed with a locking device.
5. After each shift, the rotary tiller should be maintained. Remove the dirt and weeds on the blade, check the tightness of each connecting piece, add lubricating oil to each lubricating oil point, and add butter to the universal joint to prevent aggravation of wear.

---
