US$18,000.00-56,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Plastic Injection Molding Machine
Plastic Type
PS,ABS,PP,PE,HDPE,PA,EVA
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Computerized
Computerized
Certification
CE, ISO9001:2008
Energy Saving
Servo Energy Saving
After Sales Service
Engineers Available to Service Machine
Voltage
380V/50Hz, According to Countreis
Showroom Locate
Malaysia,Russia,Turkey,Uzbekistan
Injection Weight
1200g, PS
Space Between Tie Bar
770X720 mm
Transport Package
Standard Package
Specification
7.85x1.89x2.4
Production Capacity
7000 Sets / Year
Packaging & Delivery
Package Size
743.00cm * 193.00cm * 225.00cm
Package Gross Weight
13700.000kg
Product Description

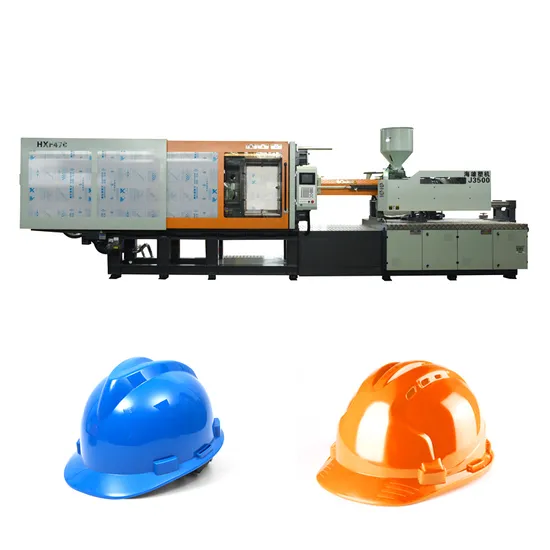

1.Picture
| MODEL: HXM410-I |
| TECHNICAL PARAMETER TABLE | A | B |
| INJECTION UNIT | SCREW DIAMETER | mm | 65 | 70 |
| SCREW L/D RATIO | L/D | 22.6 | 21 |
| INJECTION CAPACITY IN THEORY | cm3 | 1128 | 1308 |
| INJECTION WEIGHT(PS) | g | 1026 | 1200 |
| oz | 36.1 | 41.9 |
| INJECTION PRESSURE | MPa | 182 | 157 |
| INJECTION RATE | g/s | 245 | 284 |
| PLASTICIZING CAPACITY | g/s | 33 | 41 |
| SCREW SPEED | rpm | 160 |
| CLAMPING UNIT | CLAMPING FORCE | KN | 4100 |
| MOVING MOULD-PLATE STROKE | mm | 700 |
| MAX. MOULD HEIGHT | mm | 800 |
| MIN. MOULD HEIGHT | mm | 280 |
| SPACE BETWEEN TIE-BARS (W×H) | mm | 770x720 |
| HYDRAULIC EJECTOR FORCE | mm | 125 |
| HYDRAULIC EJECTOR STROKE | KN | 180 |
| EJECTOR NUMBER | n | 13 |
| OTHERS | PUMP PRESSURE | MPa | 16 |
| MOTOR /DRIVING POWER | KW | 37/37 |
| HEATING CAPACITY | KW | 23.15 |
| MACHINE DIMENSION (L×W×H) | m | 7.38*1.96*2.35 |
| MACHINE WEIGHT | t | 13.7 |
| OIL TANK CAPACITY | L | 680 |
