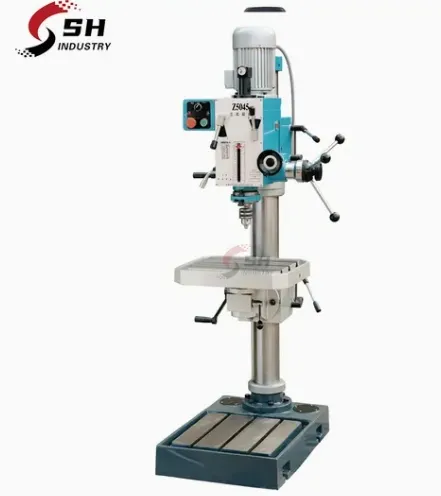

Auto Feed Vertical Drilling Machine Z5032 Z5040 Z5045 High Precision Cheap Vertical Drilling Machine

Product Description

Auto Feed Vertical Drilling Machine Z5032 Z5040 Z5045 High Precision Cheap Vertical Drilling Machine
Product Description
Main technical Specifications:

Specifications	Z5032	Z5040	Z5045
Max.drilling dia.	32mm	40mm	45mm
Spindle taper	M.T.3 or R8	M.T.4	M.T.4
Spindle travel	130mm	130mm	130mm
spindle speed steps	6	6	6
spindle speed range 50Hz	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Min.distance from spindle axis to column	283mm	283mm	283mm
Max.distance from spindle nose to worktable	725mm	725mm	725mm
Max.distance from spindle nose to stand table	1125mm	1125mm	1125mm
of headstock	250mm	250mm	250mm
Swivel angle of headstock (horizontal/perpendicular)	360°/±90°	360°/±90°	360°/±90°
of worktable bracket	600mm	600mm	600mm
Worktable size of avaliablity	380×300mm	380×300mm	380×300mm
Swivel angle of table horizontally	360°	360°	360°
Table leaned	±45°	±45°	±45°
Size of stand worktable of avaliability	417×416mm	417×416mm	417×416mm
Motor Power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
speed of motor	1400 r.p.m	1400 r.p.m	1400 r.p.m
Net weight/Gross weight	430kg/480kg	432kg/482kg	435kg/485kg
Packing size	1850×750×1000 mm	1850×750×1000 mm	1850×750×1000 mm

Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
