Disc Centrifuge Crude Coconut Oil Separator, Virgin Coconut Oil

Product Description

Product Description
The disc centrifuge is an equipment with high efficiency, high output and advanced automation. It is suitable for the separation of solids with low solid content and the incompatibility of liquids with small difference in specific gravity. It is an essential equipment for many industries such as food, chemical, biological products and beverage products.
According to the degree of automation control of the disc separator, it can be divided into two types: a manual slagging disc separator and an automatic slag disc separator, and at the same time, the automatic slag disc separator is different according to the slagging mode. It can be divided into manual automatic slag disc separator, also known as semi-automatic slag disc separator, and another disc separator completely controlled by PLC system is called automatic slag disc separator. The internal slagging method includes a nozzle slag separating machine and a ring valve slag separating machine.

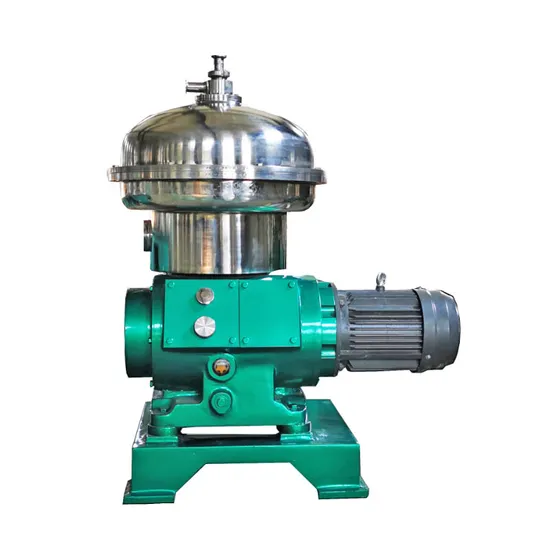

The disc separator is a vertical centrifuge, and the drum is mounted on the upper end of the vertical shaft, and is driven by a motor to rotate at a high speed through a transmission. The drum has a set of disc-shaped parts that are nested together. There is a small gap between the disc and the disc. The suspension (or emulsion) is added to the drum by a feed tube located in the center of the drum. When the suspension (or emulsion) flows through the gap between the discs,
working principle
The solid particles (or droplets) settle to the disc under the action of a centrifuge to form a sediment (or liquid layer). The sediment slides along the surface of the disc to separate from the disc and accumulates in the portion of the drum having the largest diameter, and the separated liquid is discharged from the liquid outlet to the drum. The function of the disc is to shorten the settlement distance of the solid particles (or droplets) and enlarge the settlement area of the drum. The drum has greatly improved the productivity of the separator due to the installation of the disc. The solids accumulated in the drum are dismantled by the drum after the separator is stopped, or are discharged from the drum without stopping by the slag discharging mechanism.
The disc separator can perform two operations: liquid-solid separation (ie separation of bottom concentration suspension), called clarification operation; liquid-liquid separation (or liquid-liquid-solid separation) (ie separation of emulsion), Said the separation operation.
Application range:
1. Mineral oil industry: purification of fuel oil and lubricating oil for ship main engines, land diesel engines, power stations, etc.;
2. Dairy industry: clarification and purification, degreasing of fresh milk;
3. Vegetable oil industry: purification and clarification of palm oil, degumming, degumming, dehydration and dewaxing of vegetable oil refining;
4. Beverage products industry: clarification of beer, juice, beverages, plant protein extraction, wastewater treatment, etc.; clarification of bioengineered fermentation broth;
5. Starch industry: concentration and grading of starch pulp;
6. Pharmaceutical industry: purification or clarification in the extraction process of antibiotics, biochemical pharmaceuticals, and clarification of traditional Chinese medicines;
7. Chemical industry: purification or clarification of chemical raw materials;
8. Lanolin industry: extracting and purifying lanolin from scouring wastewater;
9. Latex industry: purification and concentration of natural rubber latex;
10. Other industries: such as laboratory, petroleum, coking, kaolin, pulp recovery, electrolyte treatment, wastewater treatment, environmental protection, etc., as well as animal and vegetable protein extraction, animal fat extraction and refining, separation of mixed fatty acids.
The marine disc separator is mainly used to remove moisture and impurities in the fuel and lubricating oil of marine diesel engines and other equipment to reduce the wear of mechanical equipment and prolong the life of mechanical equipment. The design, manufacture and acceptance of the marine disc separator are in accordance with the standards of the GB/T5745-2002 marine disc separator.
Product Parameters

Model	DHC250	DHC270	DHC400	DHC500	DHC550
Drum speed(r/min)	11500	8086	7070	6626	6000
Equivalent settlement area(*107cm2)	10.5	17.2	28.5	67.2	86.5
Separation factor(g)	14600	8860	10785	12293	10500
Water capacity(t/h)	0.5-1	1	3	5	10
Power(kw)	4	4	7.5	15/18.5	22/30
Overall dimension(mm)	920*790*950	810*968*1139	1495*1130*1485	1780*1500*1900	1850*1550*2050

---
