Dry Chilli Licorice Root Grinder Machine Masala Herb Spice Red Chili Turmeric Powder Grinding Machine

Product Description

Product Description
WFJ Series Air Classifier Mill
Product Introduction:Air Classifier Mill, its another name is Ultra Fine Powder Pulverizer, with a winnowing, no screen,
a variety of properties and uniform particle size, the production process is continuous.
Crushing operations in the host machine is not heating up, can crush all kinds of heat sensitive materials.
The overall performance has reached international advanced level, it is widely used in pharmaceutical,
chemical, food, Medicine, Health care...etc. Food, such as, corn, rice, chili, pepper, oil and wheat, soybean,
garlic, star anise, cinnamon, dehydrated vegetables, hawthorn, ginger, garlic, sugar, sweeteners. grains,
dried small shrimps, pumpkin powder, spices, seaweed, and other industrial materials crushed.

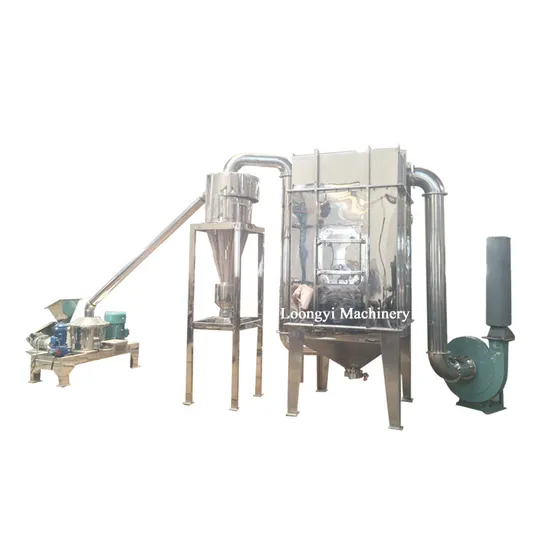

Working Principle:This mill is composed of grinding host, cyclone separator, pulse dust collector, blower, electric control box,
frame and pipes.
After materials are sent to the milling chamber by screw, it will be sheared and crushed by the blade of
high speed rotation. The powders will pass through the guide ring and enter the classifying chamber.
Under the action of aerodynamic and centrifugal force, powders larger than the graded particle size
will be thrown back to the milling chamber for further crushing. Powders smaller than the critical diameter
will enter the cyclone separator and a small part of the super fine dust will enter the pulse dust collector.
Product Parameters
Technical Data:

Model	Capacity kg/h	Feeding Size mm	Output Size mesh	Total Power kw	Main speed rpm	Overall size (LXWXH) mm	Weight kg
WFJ-15	30-50	< 12	60-1000	15.2	5800	4200 × 1250 × 2700	850
WFJ-20	50-100	< 12	60-1000	25.1	4200	4700 × 1250 × 2900	1340
WFJ-30	100-300	< 12	60-1000	46	3800	6640 × 1300 × 3960	1800
WFJ-60	300-500	< 12	60-1000	84.15	3200	7500 × 2300 × 4530	3200
WFJ-80	500-800	< 12	60-1000	100.4	2800	8200 × 2500 × 4600	3800

Detailed Photos
Product Pictures:
Two types blades:
Company Profile
With more than 20 years of manufacturing experience, Jiangyin Loongyi Machinery Co.,ltd specialized in manufacturing
powder grinding machine, mixing machine, sifting machine, granulator machine, packing machine, drying machine,
conveying machine, slicing machine, cleaning machine and so on, which are widely used in foodstuff, chemical,
pharmaceutical and other industries,etc.
Since its foundation, Loongyi has always adhered with the principle of quality firstly and technology is life. The
company owns more than 50 employees, about 1000m2 of office space, cover about 9000m2 of manufacturing space.
With customer concentric idea as base, it takes every detail seriously in the process of production to assure high
performance and quality of each part and equipment as well as the stable operation in more than 80 countries around
the world. Our products have been exported to such countries and regions as USA,Canada, Europe, Japan, Australia,
Africa,South Asia,middle Asia. We also welcome OEM and ODM models. Our products are approved by CE and ISO.
Loongyi Machinery locates in No. 236 Yungu Road, Zhutang town, Jiangyin City, Wuxi City, Jiangsu Province, China.
It takes about 20 minutes to take the high-speed train from Shanghai to our city; It takes about 40 minutes to drive from
the high-speed railway station to our factory. There is airplane in our city, so transportation is very convenient.
Over these years, our company has made elaborate design and improvement,on the basis of absorbing features and
advantages of similar products both at home and abroad.
The products have won good reputation and praises among all customers, from at home and abroad,too.

---
