2500bph 2 Cavity Automatic Pet Bottle Blow Molding Machine

Product Description

Product Description

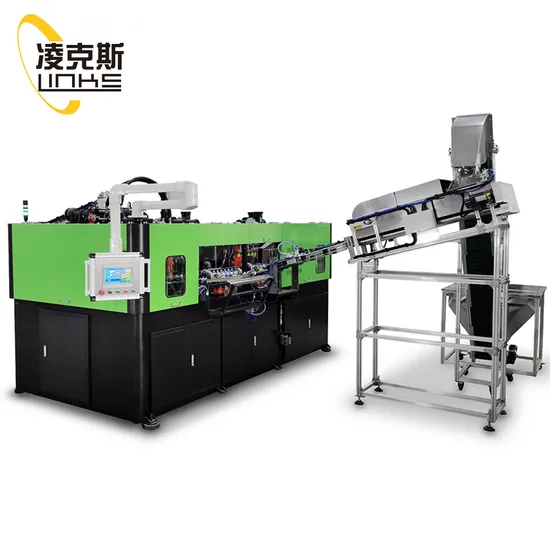

2500BPH 2-Cavity Automatic Pet Bottle Blow Molding Machine
Automatic bottle blowing molding machine is suitable for producing PET plastic contains and bottles in all shapes. It is widely used to produce water bottles, carbonated bottles, oil bottles and etc.
Stable performance with advanced PLC, and operate the whole machine with human-machine interface touch screen, which make the operation and adjustment easy.
Heating temperature and blowing time etc technology parameters are corresponding set according to customer's different preform and bottle shape.
Equip with automatic preform unscrambler and preform elevator.
Low cost, high efficiency, easy maintenance, with automatic technological process.

Model		LK-2000	LK-4000L	LK-6000
Theoretical Output(b/h)		2200	4000	6000
Clamping System	Cavities	2	4	6
	Clamping Unit(Kg)	20000	48000	56000
	Mold Stroke(mm)	120	130	90
	Stretch Stroke(mm)	320	340	250
	Bottom Stroke(mm)	30	30	30
	Cavity Pitch(mm)	120	120	120
	Heating Pitch(mm)	55	55	55
	Number of Holders(pcs)	64	114	114
Container	Max. Container Volume(L)	2	2	0.6
	() Max. Neck Diameter(mm)	32/38	38	38
	Max. Preform Height(mm)	140	140	100
	Max. Container Diameter(mm)	105	110	65
	Max. Container Height(mm)	320	340	250
Electrical System	Heating Oven	2×9	4×4	8×8
	× Box × Channel	2×9	4×12	8×7
	Number of Lamp(pcs)	18	48	56
	Heating Power(kw)	21.6	57.6	67.5
	Installed Power(kw)	25.5	65	75
	Voltage(V)	220V/380V/3phases
Air System	Blowing Pressure(Mpa)	3.5	3.5	3.5
	High Pressure Air Consuming(L/min)	2000	4200	5600
Chiller System	Temperature(c)	10-15
	Pressure(Mpa)	0.3-0.5	0.3-0.5	0.4
	Flow Rate(L/min)	40	80	80
	Heating Power(HP)	4	5	5
Machine	(L×W×H) Machine Dimension(mm)	2600×1800×1800	3800×2000×2000	4800×2200×1800
	Weight(kg)	3500	6000	5500

FAQ
1) Can your factory provide the whole plant from A to Z?
A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.
2) Are all machinery your factory made?
A: Our factory make the water purification and filling packing plants. We do not make the bottle making machinery,
we have good quality bottle making machinery partner, and we provide to customer same long warranty time and good after service.

3) How can I know the machinery quality before I order?
A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.
4)What certificates you can provide?
A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect
5)Can your factory make the bottle drawing, workshop layout, and labels for us?
A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.
(Workshop need customer to provide the size of factory)
6)Installation and Training Time
A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work

---
