Orfs Female Flat Seal High Pressure Hydraulic Fittings 24211

Product Description

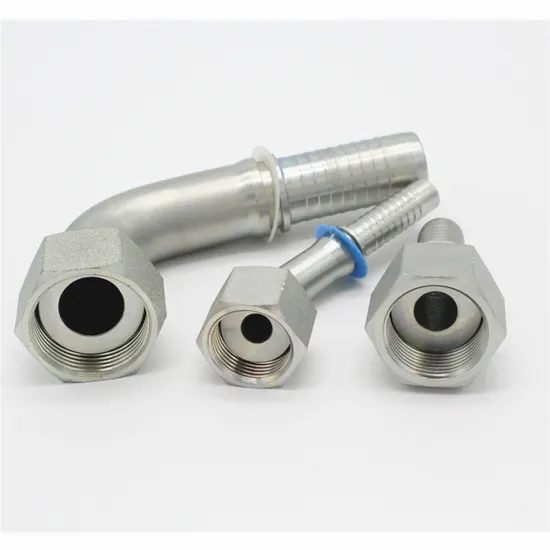

Product Description ORFS Female Flat Seal High Pressure Hydraulic Fittings
It is ORFS Female style, our part number is 24211, if the material is stainless steel, the part number is 24211SS.

Product Parameters Specification:
ORFS FEMALE FLAT SEAT ISO 12151-1 -- SAE J516

Part No.	Thread E	Hose Bore		Dimensions
		DN	DASH	A	B	S2
24211-04-04	9/16"x18	6	04	22.5	8.5	19
24211-04-05	9/16"x18	8	05	22.5	8.5	19
24211-04-06	9/16"x18	10	06	22.5	8.5	19
24211-06-04T	11/16"x16	6	04	23.5	10	22
24211-06-05T	11/16"x16	8	05	23.5	10	22
24211-06-06	11/16"x16	10	06	25.5	10	22
24211-06-08	11/16"x16	12	08	26	10	22
24211-08-05T	13/16"x16	8	05	25	11	27
24211-08-06T	13/16"x16	10	06	25	11	27
24211-08-08	13/16"x16	12	08	28	11	27
24211-08-10	13/16"x16	16	10	29	11	27
24211-10-08T	1"x14	12	08	29.5	13.5	30
24211-10-10	1"x14	16	10	33	13.5	30
24211-10-12	1"x14	20	12	33.5	13.5	30
24211-12-08T	1.3/16"x12	12	08	30.5	15	36
24211-12-10T	1.3/16"x12	16	10	31.5	15	36
24211-12-12	1.3/16"x12	20	12	35	15	36
24211-12-16	1.3/16"x12	25	16	36	15	36
24211-16-12T	1.7/16"x12	20	12	35	14.8	41
24211-16-14T	1.7/16"x12	22	14	35	14.8	41
24211-16-16T	1.7/16"x12	25	16	35	14.8	41
24211-16-20	1.7/16"x12	32	20	39.5	14.8	41
24211-20-16T	1.11/16"x12	25	16	35	15	50
24211-20-20W	1.11/16"x12	32	20	42.5	15	50
24211-20-24W	1.11/16"x12	40	24	42.5	15	50
24211-24-20T	2"x12	32	20	36	14.8	60
24211-24-24T	2"x12	40	24	36	14.8	60

Note: 1 for use with braided hoses, if use with spiral hoses, hose fitting series number is 24212-**-**. Detailed Photos
Other Hydraulic Fitting we produce:
Packaging & Shipping Packageing: Well packed by cartons and free fumigating wooden box.
Strong Packaging of Hydraulic Hose Fitting from PAISHUN
All fittings are with PVC plastic caps and plugs to protect against Dust.
All fittings are packed in good quality strong cartons ( 5 layers corrugated) with a plastic sheet inside for protection.
In order to guarantee that even in worst sea / maritime weather/transport conditions, the fittings shall arrive at the final destination in perfect condition without corrosion caused by sea salt and humidity.
Normal Measure:
Carton:24cm X 24cm X 16cm
Wooden box: 110cm X 85cm X 75cm
Usually 42 cartons can be packed in a wooden box.
Surely we can be customized the measure according to your request.
Workshop Workshop and Testing Machine

---
