Wenzhou Food Grade Ball Valve Manufacture DN50 Stainless Steel AISI304 Manual Ball Valve Sanitary Full Port Tri Clamp 3-Piece Ball Valves

Product Description

Product Description
Wenzhou Food Grade Ball Valve Manufacture DN50 Stainless Steel AISI304 Manual Ball Valve Sanitary Full Port Tri Clamp 3-Piece Ball Valves Sanitary Ball Valves are widely used in food, pharmaceutical, cosmetics, clean steam, alcohol, beverage, biochemical industrialprocess control occasions. It is automatic or manual operated Ball valve, suitable for various applications inside the stainless steel piping system. Sanitary ball valve seat seal is made of PTFE material, with good sealing performance. Working Principle Sanitary ball valves can be tightly closed with only 90 degrees of pneumatic rotation and a small turning torque. The completely equal valve body cavity provides a small resistance and straight flow path for the medium. It is generally believed that ball valves are most suitable for direct opening and closing use, and ball valves have been designed to have throttling and flow control functions. The main characteristic of ball valves is their compact structure, easy operation and maintenance, suitable for general working media such as water, solvents, acids, and natural gas, and also suitable for harsh working conditions such as oxygen, hydrogen peroxide, methane, and ethylene. The valve body of a ball valve can be integral or modular.
Product Parameters

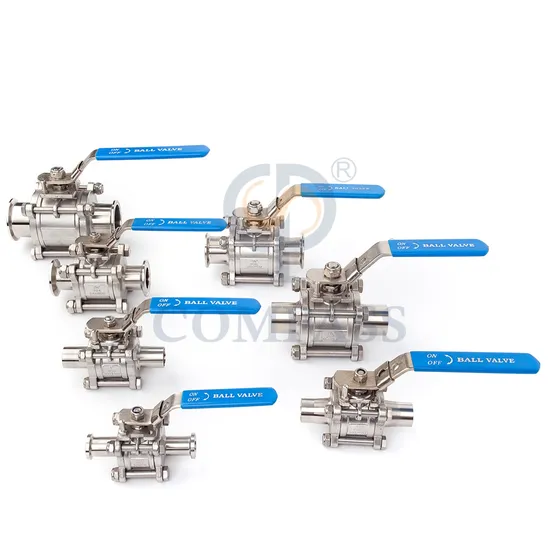

Product Photos
Main Parameter

Standard	SMS, DIN
Material Contact Parts	SS304(1.4301)/SS316L (1.4404)	Provided with material inspection report
Material Non-contact Parts	SS304(1.4301)
Size	1/2 to 4 inch, DN10 to DN100
Body Combination	Straight Two Ways, Three Ways T port, Three Ways L port
Connection	Butt-weld, Tri-clamp, Male Thread, Union, Flange
Seal Material	PTFE Seal. The seal material comply with FDA21CFR117.2600
Power Option	Manual Operated
	SS Pneumatic Actuator, Aluminum Pneumatic Actuator, Electric Actuator
Working Pressure	≤10bar(145psi)
Supply Pressure for Air Actuator	5~8(72.52psi~116psi)
Internal Surface Treatment	Ra16~32uin(0.4~0.8um)
External Surface Treatment	Ra32~64uin(o.8~1.6um)

Operating Torque( N.M.) Matched with Actuator

Size	DN10-DN20	DN25	DN32	DN40	DN50	2.5"	DN65	DN80	DN100
	1/2"-3/4"	1"	1-1/4"	1-1/2"	2"	2.5"	3"	3.5"	4"
Dry test(N.M.)	8	8	10	12	17	25	30	40	70
Aluminum Actuator	AT50	AT50	AT50	AT63	AT75	AT88	AT88	AT115	AT125
Electric Actuator	5	5	5	5	10	20	20	20	20

Design & Features 1.Various standards can be provided: SMS,DIN2.Available in sizes from 1/2"-4", DN10-DN1003.Seals comply with FDA 21CFR 177. 2600.4.The valve body can be customized with a wide selection of different connections.
Advantages
1.Free of maintenances2.Compact and portable3.Small operating torque4.Gasket complies with PTFE FDA 177.26005.Handle level can be installed on the side of valves body, no matter of the flow direction.
Product Drawings
Related Product Photos
If you have any inquiry or question for our valves, please kindly do not hesitate to let us know soon. We also produce other valves and pumps, welcome to Xusheng here, we will try our best to quote you in competitive prices.
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided
If small order and choose by express , the items are packed by shrink wrap and secondly carton cases.
If heavy weight of cargo ,which be packed by strongly seaworthy ply-wooden ases .
In order to protective items , which will be packed by safety and resistance to shock in ply-wooden cases.
Product Application
XuSheng & ComPass Valves are widely applied to many fileds,such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.
Company Profile
XuSheng & ComPass are manufacturer and supplied with sanitary valves, pumps, pipe fittings, tanks, tube. They are widely used for food,beer,beverage, chemical,biological, pharmacy and so on. Totally 112nos of workers and the factory Covers 4035m2,our warehouse covers1000m2. We have 29 sets of LG Mazak machines and other CNC machine from Japan ; Meanwhile,we have 2 sets of automatic machiningunit. Here is our range of products as below.
A. Sanitary valve includes of butterfly valve, mix-proof valve, division valve,diaphragm valve, ball valve, check valve, safety valve, air relief valve, angle seat valve, constant pressure valve, bottom tank valve, racking arms valve, float valve, breather valve, and so on.
B. Sanitary pumps includes of centrifugal pump, rotary lobe pump, CIP self priming pump, mixing pump, vacuum pump, Emulsion Pump,screw pump, and so on.
C. Sanitary tank component includes of manhole cover, cleaning ball, filter,sight glass.
D. Sanitary pipe fitting has union, ferrule, clamp, solid end cap, pipe holder, nipple, coupling, adapter,elbow, tee, reducer.
E. Sanitary tanks includes of storage tank, mixing tank, fermentation beer tank, and so on.
F. Sanitary tube has seamless and weld type
14 years experiences in design and good solution in food grade production line. Competitive prices & High quality products to achieve win-win mutual benefits. Professional & Communicate easily.
Huge warehouse & Delivering shortly. Strong team & Better after-sale.
FAQ
Q1. Are you a trading company or manufacturer ?
A:We are a manufacturing factory.
Q2. What's the payment terms?
A:For small testing orders,we accept Paypal,Western Union,T/T and credit Card.
For mass orders,we accept T/T and L/C.
Q3.How do you control the quality?
A:Quality control is very important to avoid material mixing and poor quality.We control the quality from beginning to the end.We only have 304 and 316L two different materials.100% inspection on raw material.During production,different materials in different place.After materials are finished,we choose 10% for inspection.If there is 0.1% problem in 10%,then no excuse to go ahead for inspecting 100% of the materials.
Q4.If there is any quality problem,how do you solve it?
A:We are proud that we never let one customer leave us.We are not 100% perfect,there is some quality problem.We try our best to provide the correct materials in the beginning,so we need less time for quality problem.If there is any quality problem,we take the responsibility.We believe what we are doing together,it will get back tomorrow.If we leave our responsibility,customer will leave us.If we always take our responsibility,we keep our customers with us.
Q5.How long is your delivery time?
A:For normal production in 7-10days.For bulk order in 15-25days.
Q6.Warranty
A:One year warranty for all of our stainless steel products.Gaskets are not included due to the different application for customers. How to Order ?
How to Order Sanitary Ball Valve?
1. What's standard for ball valve? Such as DIN, SMS
2. What's material quality? Such as SS304 and SS316L for optional
3. What's size? The available size is from 1/2inch to 4inch, DN10 to DN100
4. What type of ball valve? Such as straight two ways, three ways T port, three ways L port.
5. What's connection end? Such as butt-weld, tri-clamp, male threaded, female threaded, union, ect.
6. What's working principle, such as SS pneumatic actuator, aluminum pneumatic actuator, electrical Actuator ?

---
