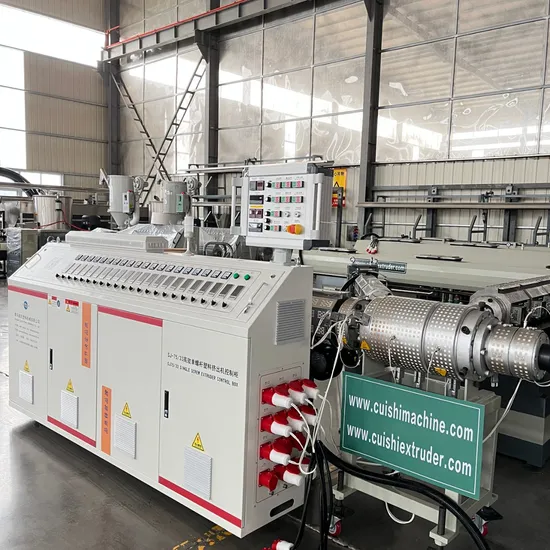

| Negotiable | 1 Set (MOQ) |
| Screw,barrel design and manufacturing Screw and barrel material:38CrMoAlA,nitriding treated Exclusive screw for PE material make sure good plasticizing effect adopt original famous electric components with high steady running quality . Gearbox: high torque, low noise, hard gear tooth face dedicated extruder gear box Self protective system: Over current protective of motor Over pressure protective of screw | ||
General description | Main electric elements | |
| Output | Around 200kg/h | |
| Connect type of extruder and mould | Bolt connection | |
| Advantages | Main parts adopt top-rank brand Strict real time quality control | |
| Screw | Diameter(mm) | 65mm |
| L/D | 33/1 | |
| Material | 38CrMoAlA, Nitrogen treated | |
| Heating | Casting aluminum heater with stainless steel outer cover | |
| Heating segments | 5 zone | |
| Heating power | 30kw | |
Barrel | Barrel type | With feeding groove; Water cooling inlet orifice |
| Cooling | Cooling by blower, temperature control accuracy: ±1ºC | |
| Cooling segment | 5 segments | |
| Material | 38CrMoAlA, Nitrogen treated | |
| Drive and Transmission system | Main motor power(KW) | 45kw motor brand |
| Speed adjusting mode of main motor | Variable frequency conversion | |
| Rotating speed of main motor (r/min) | 1500r/min | |
| Gear box | Hard gear tooth face Low noise design Material of gear: 20CrMnTi | |
| Item | Description | Unit | Remark |
| New type calibrator make sure good cooling effect and high speed extrusion | |||
| 1 | Diameter range(OD) | mm | 20-110mm |
| 2 | Wall thickness | / | as per customer's request |
| 3 | Mould material | / | 40Cr |
| 4 | Material of the calibration Bushing | / | Stannum Bronze copper |
| NO | Description | Unit | Remark |
| automatic water level control electric cabinet with water-proof protection forceful concentrated spraying water cooling with good cooling effect vacuum pump and water pump adopts intelligent pump with self protection function Perfect pipeline design can keep nozzle unblocked | |||
| Function: calibrate the outer diameters and cooling pipe primarily | |||
| 1 | Length of the tank | mm | 6000 |
| 2 | Material of water tank | stainless steel, SUS304 | |
| 3 | Sizing bushing material | Stannum-bronze | |
| 4 | Cooling Mode | Spray-pouring cooling | |
| 5 | Pouring areas | 4 | |
| 6 | Water Pump Power | KW | 1.5kw×2sets |
| 7 | Vacuum Pump Power | KW | 4kw×1set |
| 8 | Vacuum Degree | Mpa | -0.03-0.05 |
| 9 | Motion Range of Forward and backward | mm | ±600, motor drive |
| 10 | Up-down Adjusting Range | mm | ±50, by manual |
| NO | Description | Unit | Remark | |
| 1 | Water tank length | mm | 6000 | |
| 2 | Material of water tank | / | Stainless steel, SUS304 | |
| 3 | Cooling mode | / | Spray-pouring cooling | |
| 4 | Water pump power | Kw | 1.5kw×1set | |
| 5 | Height adjusting | / | ±50mm by manual | |
| NO | Description | Unit | Remark |
Pneumatic clamping, variable frequency speed adjusting adopt famous brand cylinder | |||
| Function: haul off PE pipe stably and synchronal with extruder speed | |||
| 1 | Available pedrail length | mm | 1400 |
| 2 | Clamping Mode | Pneumatically | |
| 3 | Speed Adjusting Mode | Frequency Conversion | |
| 4 | Hauling Motor Power | KW | 1.5kw*2set |
| 5 | Hauling Speed | m/min | 0.5~8 |
| NO | Description | Unit | Remark |
| PLC control,automatic dust free cutting, with meter counting function Saw blade adopts carbide blade | |||
| Function: cut HDPE pipe in fixed length | |||
| 1 | Cutter type | Automatic meter counting cutter | |
| 2 | Suitable cutting pipe diameter | 20-110mm | |
| 3 | Cutting speed | Synchronization, automatic cut in fixed length | |
| 4 | Motor power | KW | 2.2 |
| 5 | Material of Cutting Saw | Alloy steel | |
| 6 | Clamping Mode | Pneumatically Drive | |
| 7 | Cutting Control | PLC control | |
| 8 | Maximum cutting thickness | mm | 18 |
| 9 | Suitable cutting speed | m/min | 12 |
| Item | Description | Unit | Remarks |
| 1 | Length | mm | 6000 |
| 2 | Discharge | / | Pneumatic |
| Note : if you need PE pipe winder ,then please advise us | |||
| Pipe ranger(mm) | 20-63 | 50-160 | 150-250 | 250-315 | 280-630 |
| Extruder | SJ65/33 | SJ75/33 | SJ90/33 | SJ120/33 | SJ150/33 |
| Capacity(kg/h) | 50-80 | 80-150 | 180-260 | 300-400 | 450-600 |
| Total power(kw) | 75 | 145 | 195 | 220 | 350 |
| Line length | 35 | 38 | 42 | 44 | 56 |
| Control system | PLC | PLC | PLC | PLC | PLC |
