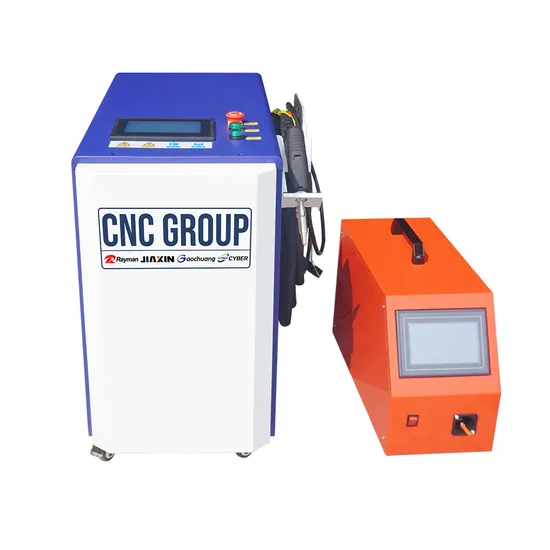

1000W 1500W 2000W 3000W 3 in 1 Portable Handheld Fiber Laser Welding Machine for Metal Factory

Product Description

Product Description
1000w 1500W 2000W 3000W 3 in 1 portable handheld fiber laser welding machine for metal factory
Detailed Photos
Product Parameters

Model	GC1000W	GC1500W	GC2000W	GC3000W
Laser output power	1000W	1500W	2000W	3000W
Max welding thickness	3.5mm	4.5mm	5.5mm	6mm
Max cutting thickness	3.5mm	4.5mm	5.5mm	6mm
Max cleaning width(standard)	40mm	40mm	40mm	40mm
Laser wavelength	1064nm	1064nm	1064nm	1064nm
Working mode	Continuous/Modulation	Continuous/Modulation	Continuous/Modulation	Continuous/Modulation
Welding request	<0.6mm	<0.6mm	<0.6mm	<0.6mm
Welding depth	0.1-2.5mm	0.1-3.5mm	0.1-5.5mm	0.1-5.5mm
Laser source	MAX fiber laser, Fiber length:10m	MAX fiber laser, Fiber length:10m	MAX fiber laser, Fiber length:10m	MAX fiber laser, Fiber length:10m
Welding tip	Swing welding head, swing range:2mm	Swing welding head, swing range:2mm	Swing welding head, swing range:2mm	Swing welding head, swing range:2mm
Welding wire diameter	1.0/1.2/1.4mm/1.6mm	1.0/1.2/1.4mm/1.6mm	1.0/1.2/1.4mm/1.6mm	1.0/1.2/1.4mm/1.6mm
Cables length of welding torch	8m	8m	8m	8m
Swing speed	2500 revolutions/min.	2500 revolutions/min.	2500 revolutions/min.	2500 revolutions/min.
Power consumed	<4kW	<6kW	<6kW	<6kW
Cooling water temperature	20ºC-40ºC	20ºC-40ºC	20ºC-40ºC	20ºC-40ºC
Electricity demand	220V 50Hz/60Hz	220V 50Hz/60Hz	220V 50Hz/60Hz	220V 50Hz/60Hz

Certifications
Packaging & Shipping
Company Profile
Our Advantages
After Sales Service
1. who are we?
We are based in Shandong, China, start from 2012,sell to Domestic Market(30.00%),South America(20.00%),Africa(15.00%),Mid East(9.00%),Central America(5.00%),Southeast Asia(5.00%),Eastern Asia(3.00%),Oceania(3.00%),South Asia(2.00%),North America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Western Europe(1.00%),Northern Europe(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC Plasma Cutting Machine, CNC Laser Cutting Machine, Laser Welding Machine, Plasma Power Supply, Plasma Laser Accessories
4. why should you buy from us not from other suppliers?
We prefer to explain for price for a while Don't want to apologize for the quality for whole life we believe that only the perfect quality is our proud because we are GaoChuang CNC, numerical control cutting machine of professional manufacturers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DDU;
Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,French,Russian,Korean,Italian

---
