Wras Cw617n Water Meter Valve Magnetic Lockable Brass Ball Valve with Lock

US$3.59

1,000-4,999 Pieces

US$2.98

5,000-9,999 Pieces

US$2.59

10,000+ Pieces

Basic Info.

Model NO.

BW-L07

Connection Form

Thread

Driving Mode

Hydraulic

Nominal Pressure

Pn1.6MPa

Channel

Straight Through Type

Structure

Fixed Ball Valve

Type

Fixed Ball Valve

Function

Control

Temperature

Normal Temperature

Standard

ISO Standard

Application

Water Industrial Usage

Product Name

Lockable Ball Valve

Lock Material

Zinc

Size

1/2" to 2"

Working Pressure

1.6MPa

Test Pressure

0.6MPa to 0.8MPa

Medium

Water, Oil, Gas

Working Temperature

-20deg to 150deg

Thread Type

Bsp or NPT

Transport Package

Standard Export Carton and Pallet

Specification

1/2" to 2"

Trademark

Ningbo bestway

Origin

China

HS Code

8481804090

Production Capacity

100, 000 PCS/Month

Packaging & Delivery

Package Size

15.00cm * 15.00cm * 20.00cm

Package Gross Weight

1.000kg

Product Description

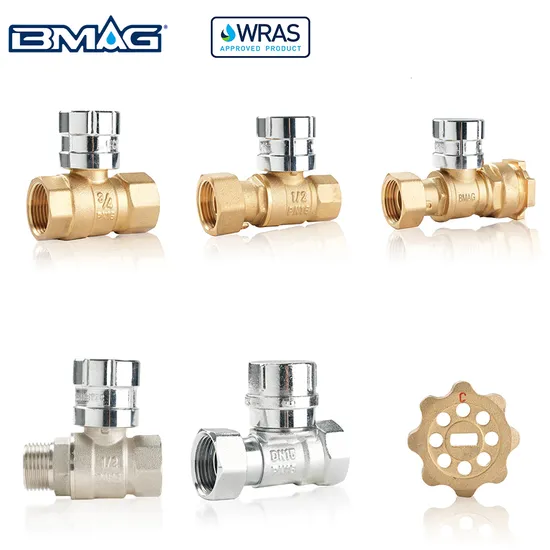

WRAS CW617n Water Meter Valve Magnetic Lockable Brass Ball Valve With Lock Product Description

Description: BBrass Magnetic Lockable Ball Valve/ Brass anti-theft Ball Valve/Brass Lockable Ball Valve consists of forged brass body, chromed brass ball and chromed magnetic lock and plastic or brass key.
1. Ball Valve functioning as an isolating valve.
2. Lock securing the valve's operating mechanism.
3. Key for releasing the lock from the valve
Size: 1/2"~2"(DN15-DN50)
Standard: BS1400
Material: Brass (CZ122, CuZn39Pb3 and so on)
Technical Specification:
Working pressure: 1.6Mpa
Tested Pressure: 2.0Mpa
Working medium: Water, oil, gas
Working temperature: -20° C≤ T≤ 150° C
Thread: BSP & NPT thread.

Lockable ball valve is a tamper-proof valve that is designed with a double-locking system, made of brass. Once secured, a special key is needed to unlock the valve.
We also have many other lockable ball valves for your your selection.
Company Profile
FAQ
In order to quote you the best price timely, please kindly provide the following information in your inquiry:
1) Product details: dimensions
2) Order quantity
3) Attached drawings if customized
4) Any special packing, delivering or other requirements
If you are not sure about any specifics of the product you need, please feel free to contact with us and we are more than happy to help.
