Product Description
Product Description

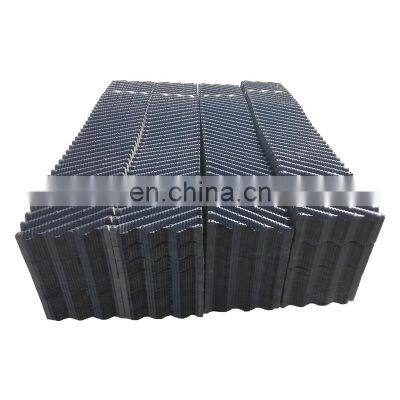

Counter Flow Cooling Tower fill Cross Fluted Film Fill Media
COOLING TOWER FILL is also named as cooling tower filler, cool ing tower infill, cooling tower fill packing and cooling tower fill media.Cooling tower fill is made of PVC or PP plain plate, hot pressed in the certain mould and then produced to be different designs used in different cooling towers. Especially in the industrial cooling towers.No matter how to name it, the main usage is a media located in the bottom or middle of the industrial cooling tower. Some of towers will be full of the fill media, others will have half and half of the tower. Only large industrial tower will install 1 layer in the bottom.
INTRODUCTION
LYOW Cooling tower fill
OW cooling tower fill belong to counter flow cooling tower fill which are glued together to be a block and placed full of the middle bottom in tower.The thickness is 0.25mm-0.35mm; the width is 150mm,305mm,610mm; the length is 1200mm, 1800mm,2000mm,2400mm; the pitch distance is 12mm,15mm,19mm and 25mm. The 19mm is normal size. It was alsocalled CF1900, CF1200. that means the fill will be glue to be a block which size is 305mmx305mmx1200mm. The honeycomb is in the vertical direction to make sure the cool air meet the hot water directly. Usually there are 2 or 3 layers in the bottom of the cooling tower. There are PVC air inlet louver match the CF1900 fill which make sure the water- treatment surface area proportion arrive to 248m2/m3, and the typical face velocity arrive to.
Product Description
Cooling tower fillCooling Tower PVC Fill, also called cooling tower infill film media. It is one of the most important components in cooling tower.It’s function is increase the exchange area of the gas and working fluid in order to achieve the requested cooling requirement.The working fluid was distributed onto the cooling tower PVC fill and spread into a thin film uniformly, by increasing the air-media interface and allowing waste heat to evaporate at an accelerated rate.
Cooling tower fill is one of the most important components for exchange of gas and water in cooling tower. The heat and resistance characteristic of the cooling tower fill are the main factors influencing the cooling efficiency. Moreover the quality of the material will influence the fill's lifetime. Our company choose the high quality fill for the cooling tower. Our cooling tower fill is with the advantages of good chemical stability, resistant acid, alkali and organic solvent corrosion, high cooling efficiency, small ventilation resistance, strong hydrophilicity, large contact area etc.
The heat resistance is the main factor influencing the cooling efficiency for the cooling tower PVC fill. And the quality of the raw material used for producing cooling tower PVC fill will influence the cooling tower fill's service time.
Working PrincipleHow do fills work in the cooling tower?Cooling towers reject heat from water-cooled system to the atmosphere. Hot water from the system enters the cooling tower and is distributed over the fill (heat transfer surface). Air is induced or forced through the fill, causing a small portion of the water to evaporate. This evaporation removes heat from the remaining water, which is collected in the cold water basin and returned to the system to absorb more heat. Each cooling tower line, although operating under the same basic principle of operation, is arranged a little differently.
Product name
| LYOW cooling tower packing
|
Colour
| Black
|
Length
| 1200mm
1800mm
2000mm
2400mm
|
Width
| 150mm
305mm
610mm
|
Thickness
| 0.25mm-0.35mm
|
Pitch
| 12mm/15mm/19mm /25mm
|
Material
| PVC/ PP
|
Customized size
| YES
|
Product packaging
Packing Method
Carton & Plastic Film, Pallet, Wooden Box or Crate,applicable to the container shipping.
Deliver Time
Within 15days since receiving the deposit or according to the quantity of your need.
Transport Ways
By sea, By air ,By express delivery.
Company Profile
About us
Hebei Lanyu Rubber&Plastic products Co., Ltd. is located in Hebei Province, the north of China. For the past few years, we devoted to providing high quality products to the customers.Our products mainly include Cooling tower fill, Cooling tower spray nozzle,Cooling tower drift eliminator,Air inlet louver etc.Tube settler, MBBR media, Bio ball,Diffusion aerator etc. Fiberglass duct rodder, Cable roller, etc. FRP grating, FRP pultruded profile,etc.SMC/FRP/GRP water tank, Galvanized steel water tank, Stainless steel water tank.But if you have any other needs please let me knowe.Our products have earned us an excellent business reputation in the field of international trade, and maintained frequent business relationships with many companies worldwide. Customers already consider us to be one of the most reliable and trusted partners. Through the continuous development of new products lines and technologies, our business will gradually expand to manufacture high-quality new products to meet the needs of our customers in different fields. However, this difficult task cannot be achieved by one party alone. The emergence of new products should be attributed to the cooperation of our employees and customers. Business ethics is just like morality to human. Adhering to the "integrity and quality first, strenuously developing highly advanced and sophisticated technology"is our eternal pursuit.We hope to achieve common development on the basis of mutual benefit and build a good brand with integrity. With a new corporate image and superior product quality, we strive to create a glorious future. We are booming.Hebei Lanyu Rubber&Plastic Co., Ltd., the descendants of dragon, always creating high-quality products, and the spirit of dragon achieves us brilliant future!
>>
