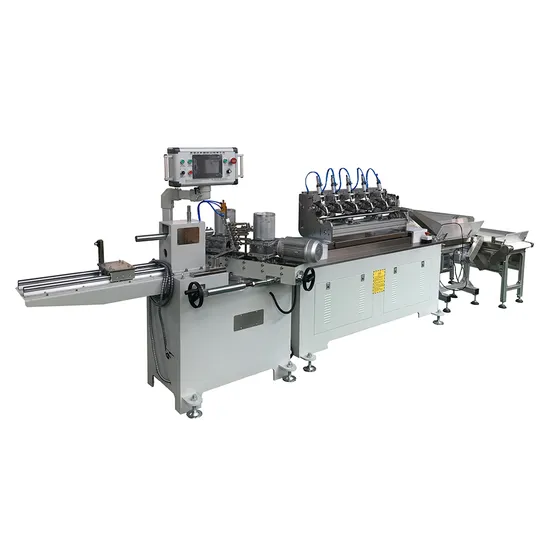

Best-Selling Drinking Paper Straw Rice Paper Straw Bending Paper Straw Making Machine

Product Description

Best-Selling Drinking Paper Straw Rice Paper Straw Bending Paper Straw Making Machine

Technical Parameter		Control System
Paper Layer	2-3 layers	Motor	3.0kw
Inner Diameter	5-8mm	PLC	Siemens
Wall Thickness	0.5-1mm	Operating Panel	Xiankong
Winding Speed	0-30 meters/min	Inverter	3.7kw
Winding Nose	Two noses single belt	Execute Components	CHNT
Length fixing	Encoder	Signal Components	Hugong
Speed Control	By Inverter	Pneumatic Components	Xingchen
Cutting System	Numerical Multi-blades (standard 5 pcs)	Electric Components	CHNT
Synchronism tracking cutting system	Servo motor synchronism tracking	Bearing	Haerbin
		Servo Motor	Yaskawa 1kw
Gluing Way	Single/Double sides	Screw Rod	ABBA from Taiwan
Operator	1-2 person	Slider	ABBA from Taiwan
Working Air Pressure	0.6Mpa	Configuration
Power Supply	380V/3Phase/50Hz	Paper Reel Stand		3 Layers Cross Type
		Gluing Unit		3 Layers Spraying Type
Measurement & Weight		Belt		2 Pieces
Measurement	5600*1600*1750mm	Mandrel Shaft		2 Pieces
Working Space	11000mm * 6000mm*2000mm	Extra blades		10 Pieces
Weight	1000kgs	Useful Tool		1 Set

Specifications

Application Material

Kraft Paper

Main

It adopts Siemens PLC and Touch Screen ,all the working parameters can be setup on the control panel, then machine will be work automatically.

It adopts Xiankong Touch Screen from Shenzheng, all the parameters can be displayed on the control panel, and easy operation.

It adopts imported frequency inverter to control the AC motor, the machine working is more stable

It adopts separate electrical control box, and it is with input plug terminal, the sale after service and repair shall be more easier

Text Display operation, all of the features automatic memory, automatic preservation, automatic fault display.

It adopts dialogue monitor, it is with function of automatic store, trouble display, working position

It adopts imported single disc cutter to cut the paper core, it is high precision, and more bearable no longer incision more precision without wasting.

The transmission parts with extreme quiet design,adopt special treatment, it is high efficiency and low maintenance.

It adopts double side glue coating devices, the paper straw is more sticky and stronger. The use of double-sided adhesive plastic trough independent stainless steel scraper polyurethane imports, production of a paper on the strength of stronger glue on one side of the traditional paper machine.

It adopts double photocell for the paper straw length tracking, after get to the setup length, the paper straw shall be cut off.

Circuit System with Remote Control function, users can travel in the office or in the field can be a computer monitor in the operation of plant equipment. If the circuit and system failure and other reasons, and in our communications tools and software control, plant technical personnel can be created to implement and maintain operational functions

Packaging & Shipping Packaging Details: Best-selling Paper Drinking Straw Making Machine Small Core Making Machine is with Film wrapped and then exporting standard wooden case, 3 machines can be loaded in a 20 ft container, one year guarantee time, whole life technician support, a set of tools, a box of vulnerable parts, English operation manual.
Delivery Details: Within 45 days after receipt of 30% payment by T/T. Best-selling Paper Drinking Straw Making Machine Small Core Making Machine .
Sample of Paper Straw:
Company Information
Jota Machinery Industrial Co.,Ltd is a long established engineering company combined with science,research, development, production and
management, It is specializing in plastic & paper packing machinery with more than 30 years experiences in China.
We supply all kinds of packaging machines tp satisfy the stringent requirements for Health and Safety, and meet the latest European CE
standards. We provide customers with professional pre and after sales services, and to guarantee complete satisfaction of the equipments
installed all over the world.
By Superior quality to create brand, prefect service to make satisfactory. We warmly welcome the friend from home and abroad to work with us
to win a mutual benefit future.
Our Service
Q1:what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also accept other
way like L/C , wetern union ,and do CFR&CIF etc.
Q2.Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumbo roll paper,start
the machine and cutting the paper.And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by
yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also
can be distributed to overseas as you required.
Q3. If the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year
,we will sent you for free.
FAQ
1, Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2, Do you have quality certificate?
Yes we have CE, SGS etc.
3,What's the delivery time?
Around 20~30days, however, based on order.
4, Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.

---
