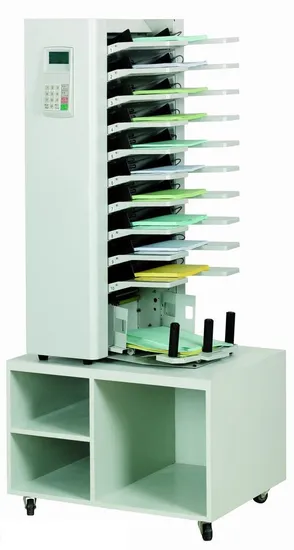

HS01 Digital Paper Collator

Product Description

digital paper collator machine for book binding machine (HS01)
paper-feed stand of fully automatic lift.
Presetting of number of copies available
Automatioc shutdown display for paper double-feed,
Paper jam,out-of-paper,paper tray full.
Drawer-type paper tray.
Cross-type deliver tray.
Provides two stacking modes:
Crisscross stacking mode
Straight stacking mode

UNIQUE INTERFACE
DIGITAL COLLATOR is equipped with soft-touch large keyboard,easy
and simple to operate.
The machines operating state is clear at a glance with its liquid crystal display .

FLEXIBLE COUNT MODE
DIGITAL COLLATOR procides two count modes:
Count-down mode and count-forward mode

Count-down mode
Set the desired collating number before start.The collating machine counts down. The
Machine automatically stops when the number turns to zero .

Count-forward mode
The collating machine counts forward until all printed sheets are completely collated.

CLEAR SHEET COLLECTING DEDIGN
DIGITAL COLLATOR is equipped with cross-type sheet collecting stand.After collation,the sheets are placed crosswise to reduce incompletely separated phenomenon of previous and next sheets due to sheets due to sheets sliding.

Model:	HS01
Station:	10
Speed:	3000shets/hour (A4-size paper) 2400sheets/hour(A3-siza paper)
Paper size:	A3-A5
Papwe quality:	40-210g/m 2
Station capacity:	250sheets(80)
Stacking capacity:	600sheets
Stacking device:	cross collating
Error display :	paper double-feed,paper jam,out-of paper,no paper, deliver tray Full,Paper miss-feed,back door open.
Power:	AC200V 180W
Net weight ;	approx.106kg
Gross weight:	approx.116kg
Volume:	1270*710*970mm

---
