Steel Plate Milling Machine

Product Description

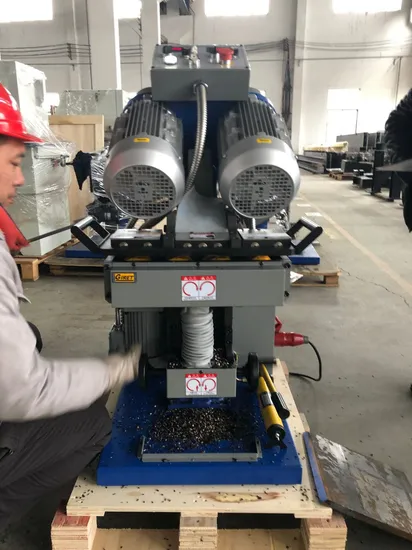

Automatic Edge Milling Machine
I.Product Introduction
*GMMA-80A automatic edge milling machine, automatic milling in the process of groove processing, reduce the cost of use, reduce labor intensity;With cold cutting operation, there is no oxidation on the groove surface after machining.The surface finish is up to Ra3.2-6.3, which fully meets the requirements of the welding industry. It can be used immediately without burr treatment.This product is pollution-free and easy to operate.
*Application field Can be used for iron and steel,ferrochrome, fine grain steel, aluminum products, copper and aluminum alloy processing.
Can be processed into "K", "V" ,"X"or "Y" groove.
Can be used in groove operations of construction machinery, steel structure, pressure vessels, shipyards and aerospace industry .
II.Main machine parameter

Model	...............…	GMMA-80A
Name	...............…	Automatic walking steel plate edge milling machine
Processing of materials	...............…	All kinds of carbon steel, stainless steel, aluminum, copper and other metal materials
Bevel angle	...............…	0°~60°(adjustable)
Cutting form	...............…	Milling type
Total Power	...............…	4800W
Motor speed	...............…	1050r/min
The blade number	...............…	Standard 2 sets (12 pieces in total, including blade screws)

*Cutting part (milling edge and top bevel only)

Spindle motor power	...............	2200W*1
Feed motor power	...............	400W*1
Spindle motor speed	...............	1050r/min
Spindle and motor	...............	Belt transmission connection
Cutter diameter	...............	80mm

III.Packing&shipping
We will provide professional export packaging and choose the appropriate mode of transportation, or we can follow the requirements of customers.
IV.After sale service
Professional technical support and product quality assurance.
V.Company production
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.
VI.Our advantages
*We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.*Based client's facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.*To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
VII.Product photos

---
