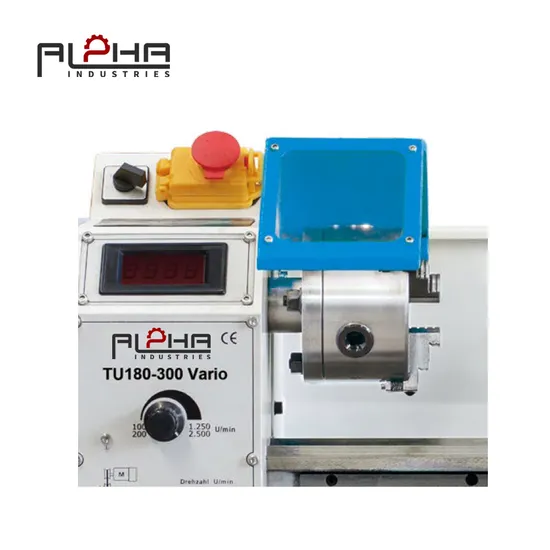

Wholesale Tu1803 Vario/Tu2104 Metal Heavy Machinery Universal Horizontal Lathe

Product Description

Product Parameters

Basic Info.
Model NO	TU1803 VARIO TU2104VARIO TU2105VARIO		Power Source	Electric
Controlling Mode	Artificial		Automatic Grade	Manual
Setting Mode	Foor-type		Precision	High Precision
Certification	CE,ISO 9001		Condition	New
Specificaton	740x390x310mm 840x390x370mm 1030x450x430mm		Trademark	Alpha industries
Origin	China		Production Capacity	100 Sets/Year

Model No.	Unit	TU1803 Vario	TU2104 Vario
swing over bed	mm	Ø180(7.09")	Ø210(8.27")
swing over cross slide	mm	Ø120(4.72")	Ø210(8.27")
admits betwee	mm	300(11.81")	400(15.75")
center height	mm	90(3.54")	105(4.13")
width of bed	mm	100(3.94")	100(3.94")
spindle bore	mm	Ø21(0.83")	Ø21(0.83")
spindle taper		MT3	MT3
3-jaw chuck	mm	Ø100(3.94")	Ø100(3.94")
range of spindle speed	rpm	150-2500	150-2500
compound rest travel	mm	75(2.95")	75(2.95")
cross slide travel	mm	85(3.35")	85(3.35")
max. section of tool	mm	12×12(0.47"×0.47")	12×12(0.47"×0.47")
threads metric pitches	mm	0.5-3(0.02"×0.12")	0.5-3(0.02"×0.12")
threads imperial pitches		10-44TPI	10-44TPI
quill diameter	mm	Ø25(0.98")	Ø25(0.98")
quill travel	mm	60(2.36")	60(2.36")
quill taper		MT2	MT2
main motor power	W	600	600
overall dimension(L×W×H)	mm	740×390×310	840×390×370
packing size(L×W×H)	mm	760×500×480	900×480×450
N.W./G.W.	kg	44/66	48/70
Standard Accessories
3-jaw chuck	Dead center MT1	Change gears kit	Wrench
Spanner	Splash guard	Oil gun
Optional Accessories
Steady rest	Follow rest	Turning tools 8×8mm	Live center MT1
Back plate	Stand+Chip tray	Face plate 100mm	4-jaw chuck

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
