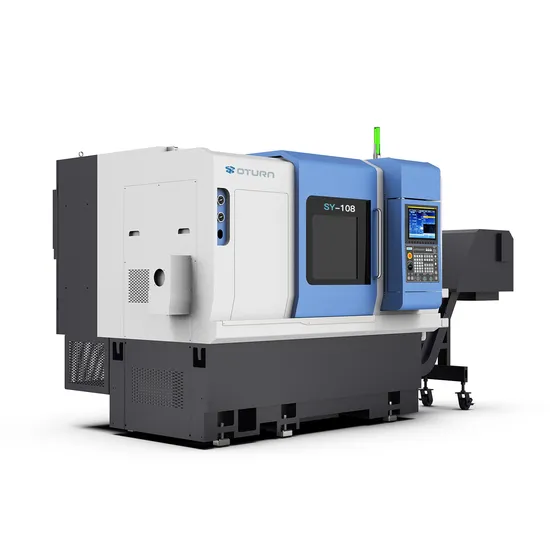

Oturn CNC Sy108 CNC Lathe Machine 5 Axis CNC Milling and Turning Composite Lathe

Product Description

Product Description
The machine adopts an optimized 30-degree inclined structure design, which also has high precision, super rigidity and excellent cutting stability. High-strength HT300 cast iron one-piece solid structure lathe, using finite element analysis, the overall machine
It has excellent rigidity and stability, and can maintain long-term reliable accuracy, improve processing stability and tool life, and eliminate stress.
In addition to improving precision and stability, the high-strength roller linear rail design structure and the transmission system adopts screw pre-tension design to improve
Reflecting rigid performance, the simple and elegant appearance is in line with the trend.
1. Main features of this machine tool
1. Adopting a 30° inclined layout and an integrated structure of the bed base, which greatly improves the bending and torsional rigidity of the machine tool during operation. The high rigidity and high stability of the integrated bed base provide high precision for the entire machine. A strong guarantee.
2. The spindle unit is an independent sleeve type. The spindle system has undergone strict dynamic balance testing and has high precision, good accuracy retention, small thermal deformation, and good thermal stability. The maximum speed can reach 4500rpm, and the nose deflection accuracy is within 0.003MM. The front end of the shaft uses a large-diameter, high-precision double-row roller bearing with a combined angular contact ball bearing structure. The optimal span two-point balance support design can withstand radial and axial loads, and can also provide users with high-speed precision work. It can also perform low-speed and heavy cutting, and is especially suitable for mass production of products with complex shapes, high precision requirements, and high smoothness.
3. World-class high-rigidity overall design servo turret. Equipped with a high-precision clutch to ensure its positioning accuracy and repeatable positioning accuracy. It is equipped with a servo motor to drive the cutterhead to rotate for bi-directional or arbitrary tool selection. The hydraulic principle is used to loosen and clamp the clutch, and the proximity switch feedbacks the clutch action signal to quickly and accurately achieve the tool change action.
4. The machine tool is equipped with roller linear guides and ball screws. The heat-treated and precision-ground ball screws can ensure the best accuracy and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method to ensure thermal stability. The amount of displacement is minimized,
greatly improving processing accuracy. The high-rigidity, large-sized, heavy-duty linear slide rails maintain intact accuracy when the machine is subjected to impact, and the displacement is smooth and low-noise, which can extend the service life. Product Parameters

	Name	Unit	SY108
Travel	Max. upward rotation of bed surface	mm	Φ600
	Max. processing diameter	mm	Φ400
	Max. processing diameter on tool holder	mm	Φ220
	Max. processing length	mm	320
Spindle Hydraulic cylinder Chuck parameter	Spindle nose	type	A2-6
	Spindle maximum speed	rpm	4500
	Cylinder/Chuck	lnch	8″
	Spindle bore diameter	mm	Φ65
	Bar diameter	mm	Φ52
	Spindle motor power	kw	11/15KW
X/Z axis feed parameter	X-axis limit travel	mm	200
	X/Z axis rail specifications	spes	35/35pin roller
	Z axis limit travel	mm	350
	X/Z axis motor power	kw	1.8KW
	X/Z axis rapid movement	m/min	30/30
	X/Z positioning accuracy	mm	±0.005
	X/Z repeat positioning accuracy	mm	±0.003
Servo Turret parameters	Tool head alignment/tool station	mm/pcs	360/10T/12T
	Square tool holder specifications	mm	25X25
	Circular boring tool holder specifications	mm	Φ40
	Adjacent tool change time	sec	0.15
	positioning accuracy	/	±2"
	Repeatability	/	±1"
Mechanical Size	Overall dimensions (length x width x height)	mm	2300x1800x1700
	Weight (approximately)	kg	3700kg
	Cutting fluid tank volume	L	89L
	Cutting water pump	kw	0.75kw

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.

---
