Metal Cutting Flat Bed Horizontal Drilling CNC Turning Lathe Machine

Product Description

Reliable and cost-effective three-speed CNC lathe Horizontal CNC machine tool
Product Description
Suitable for: general machining manufacturing industry, parts batch, small partsproduction.
Feature

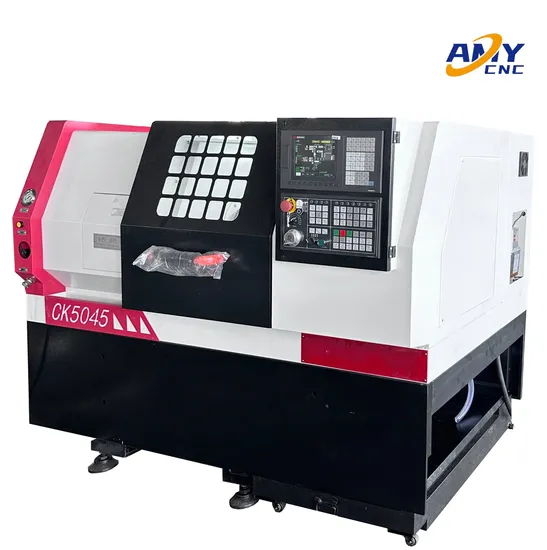

CK5045 three-speed CNc lathe is one ofthe series products ofCNc of ordinary lathe ofour factory, which has reliable performance andhigh cost performance.lt is a two-coordinate lloneitudinal2,transverse X continuously controlled horizontal CNc machine tool, whichcan automatically complete the turming machining of internal and external round suraces, conical surfaces, circular-arc surfaces, endsurfaces, many kinds of threads (metric and imperial threads, taper threads, end threads), driling, reaming, boring and other turningmachining. The machine is equipped with automatic lubrication system, which can efectively reduce the influence of thermal deformation and ensure the machining accuracy. This machine tool has a wide range of versatility, ordinary use in general machining manufacturing industy, parts batch, small partsproduction.
Product Parameters

Machine Structure	Guideway structure	Rectangular
	Guideway width mm	380
	Headstock transmission structure	Gear
		Bare Shaft
Machining capacity	Max.rotary diameter of lathe body mm	500
	Maximum turning diameter of lathe body mm	400
	Maxtuming diameter on the lathe support board mm	330
	Max.workpiece length mm	450
	Max.bar through-hole diameter mm	60
Stroke	X-axis mm	230
	z-axis mm	470
Feed	X-axis fast v m/min	10
	z-axis fast v m/min	10
	x-axis sm torq N.m	6
	Z-axis sm torq N.m	7.5
Spindle	Spindle end form	A2-6
	Spindle through hole diameter /mm	62
	Spindle hole taper	Metric 70
	RPM r/min	100-1500
	Spindle shift method	Continuously Variable Speed Three-speed Manual
	Main motor power Kw/rpm	7.5/1450
	Chuck form (standard)	Manual Three-jaw Chucks
	chuck form (optional)	Hydraulic Chuck
	chuck size Inch	10"
Toolholders	Turret type	4-station Electric Tool Holder
	Tool size	25x25
Tailstock	Lathe rear seat form
	Lathe tailstock sleeve diameter mm
	Lathe tailstock sleeve stroke mm
	Lathe tailstock sleeve taper
POWER SUPPLY	Total volume Kw	13
	V V	380
	I A	31.5
Specification	WT kg	2200
	SIZE LxWxH(mm)	2400x1480x1550
Other	Optional Buy more

Detailed Photos
hot selling product

Company Profile
Zhejiang Haochen CNC Equipment Co., Ltd. is located in Taizhou, Zhejiang, China. Our company specializes in the manufacturing of valve machines and aluminum product machines. Our main products include CNC Lathe Machines, CNC Transfer Machines, Automatic Forging Machines, CNC Machine Centers, Long Bar Feeder CNC Lathe Machines, Testing Machines, and more.
We have several engineers who are experts in structural design and possess strong product development capabilities. We provide design and manufacturing services for various types of machines and custom-structured machines for our clients.
Over the past 20 years, we have been supplying high-quality machines to many world-renowned brands in countries such as India, Bangladesh, Egypt, Turkey, Tunisia, Vietnam, Australia, the United States, and Ireland.
We look forward to establishing business relationships with everyone and hope to expand our business through joint efforts. We look forward to your inquiries.
FAQ
1. How can l choose the most suitable machines ?
A:Please tell me your specifications,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.
2. Who are we?
A:We are based in Zhejiang, China, start from 2020,sell to Africa(30.00%),South Asia(20.00%),South America(10.00%). There are total about 11-50 people in our office.
3. How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final inspection before shipment;
4. What can you buy from us?
A: CNC lathe machine, CNC transfer machine,CNC milling center, CNC turn-milling compound lathe,Punching machine ball machine, assembly machine and so on .
5. What's the MOQ?
A: 1 set.

---
