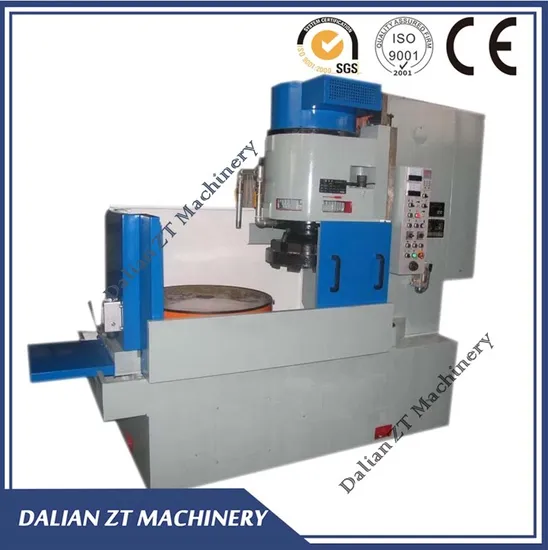

Vertical Spindle Surface Grinding Machine with Round Rotary Worktable M74140 M74160

Product Description

Features:
The grinding range is from Φ500mm to Φ1600mm. is a high-efficiency grinder with round electro-magnetic worktable and vertical wheelhead, with its wheel end-face for flat-surface grinding, so it is used for rough-grinding of stock or rapid-grinding for moderate accuracy, suitable for batch production workshop. If fine-grit wheel is provided, the machine can also be applied for grinding higher finish and higher accuracy workpieces such as bearing rings, piston rings etc. Accordingly, this machine is suitable for grinding in automobile, tractor and bearing industry.

Item	M74125G	M74140G	M74160G
Table diameter	Φ1250mm	Φ1400mm	Φ1600mm
Table speed	5-20rpm	5-20rpm	5-20rpm
Max. Swing dia. of workpiece	Φ1300mm	Φ1500mm	Φ1700mm
Table movement	560	770mm	900mm
Total machine power	53kW	71kW	96kW
Max. Loading of table	1500kg	2000kg	4000kg
Grinding wheel size(ODxIDxH)	650x570x150mm
Spindle speed of grinding head	740rpm	740rpm	590rpm
Grinding head motor	45kW	55kW	75kW
Max. Grinding size(DxH)	Φ1250x320mm	Φ1400x320mm	Φ1600x400mm
Roughness of machining surface	Ra0.8um	Ra0.8um	Ra1.25um

Standard accessories:
Coolant tank;
Coolant pump;
Cable;
Wrench;
Machine wedge;
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.

---
