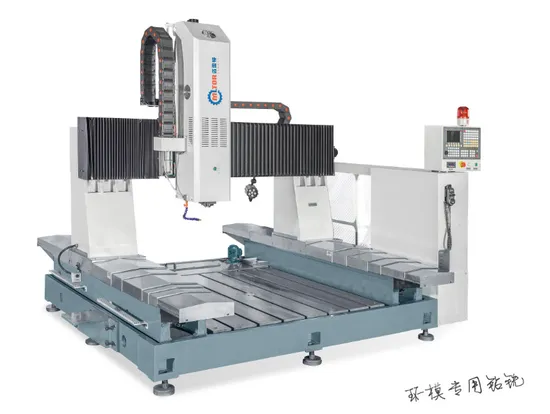

CNC Small Planomiller Drilling and Milling Machine (MLT-FDM1216)

Product Description

CNC small planomiller drilling and milling machine
Technical description
1.special design for the ring die process.
2.high quality,economical use.
3.small body,but large stroke and high rigidity.
4.the integration processing of ring die hole and keyway installation.
5.only input the ring die parameter,installation hole number,keyway width and groove depth,the processing will be done automaticaly by the machine.
6.drilling and milling can be switch.
7.man-machine interface friendly,enter the processing parameter can be run.
8.milling slot,drilling high presicion,eliminating the need to draw lines of the process.
9.fully automatic drilling,milling groov,can be realized batch processing.
10.work table with the overall casting,increasing machine load capacity.
11.BT30 spindle with pneumatic cutting,and change the cutting tool easily and rapidly,high precision.
12.professional custom CNC system to ensure the reliability of the process,stability.
13.Z-axis travel long,it can adapt to different thickness of ring dies.
Parameter description

Number of control axis	3
Spindle travel range	1180x1100mm
Workbench space(L*W)	1200x1600mm
Z-axis travel range	540mm
Spindle spcification	BT30
Spindle speed	100-3000r/min
Scope of drilling	2.0mm-30mm
Tool change	pneumatic cutting

The clamping way	customized jig
Spindle power	3.7kw
Host weight	3500kg
Floor space(L*W*H)	2600mm*2500mm*2600mm

---
