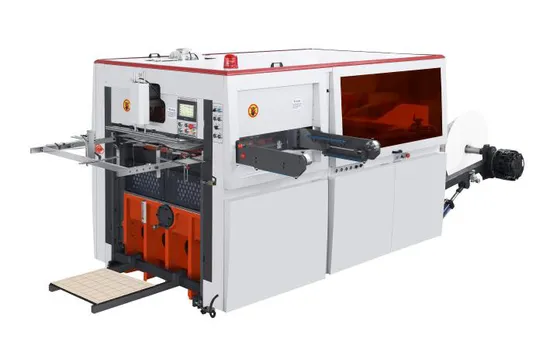

High Speed Full Automatic Reel Paper Die-Cutting Machine for Cup Paper Fan

Product Description

Product Description
The machine is a professional machine in die-cutting creasing and embossing
various PE coated paper, normal paper, corrugating paper and plastic material. It applies to paper cup,paper box,medical package,wine package,food package and other environmental protection products.It adopts micro-computer,HMI,servo positioning,alternating current frequency converter,automatic counting,photoelectric rectifying,pneumatic lock cutting plate,electromagnetic clutch,centralized oil lubrication,,overload protection and distinctive gearing.All of these is the guarantee of steady pressure,precise positioning,smooth running,safety and reliability operation.
Product Parameters

Model	CW-970X550
Die Cutting Precision	± 0.10mm
Speed	90-140times/min
Cutting area	950*550mm
Suitable material	120-600gsm
Pressure	280ton
Power	11kw
Weight	7500kg
Air source	0.7Mpa, 1.5m³/min
Dimension	4000(L)*2100(W)*1850(H)mm
