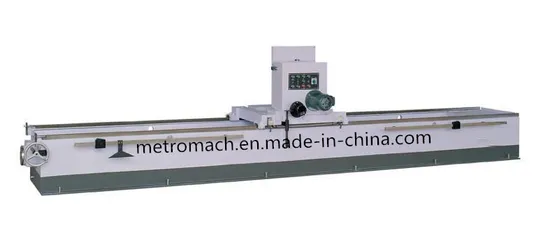

Automatic Woodworking 5FT and 8FT Knife Grinding Machine

Product Description

Automatic Woodworking 5FT and 8FT Knife Grinding Machine
1.This machine can work types: straight knife, knife like peeling knife, knife granulator, slicing knife, knife, scissors and so on.
2 Longmen frame design, combined with high quality steel welding, the elimination of internal stress, the elimination of internal stress. The body has a high strength and good rigidity.
3.grinding head with special motor. It can adjust the direction of axial clearance, stable transmission, long service life, high precision.
4 the vertical motion of the ball screw is used to ensure the accuracy.
5 the working platform adopts electromagnetic chuck, and it is very convenient to use a knife. The working table is easy to adjust the angle of the worm wheel and worm.
6 rail with linear guide rail to ensure the stability of the horizontal motion of the grinding head. Taiwan HIWIN linear guide rail imports.
7 use of transducer. Easy to adjust grinding head horizontal and vertical speed.
8 the working accuracy of the machine is 0.01mm
Parameters:

Model	DM1815	DM1830
Max grinding length	1500mm	3000mm
Working width	180mm	180mm
Grinder head speed	15m/s	15m/s
Walking speed	12m/min	12m/min
Speed of sliding plate	Stepless speed change	Stepless speed change
Grinder Wheel diameter	220mm	220mm
Power	4kw	4kw
Angle	±90°	±90°
Size	3300×1400×1400 mm	5300×1400×1400 mm
Weight	2000 kg	2800kgs
