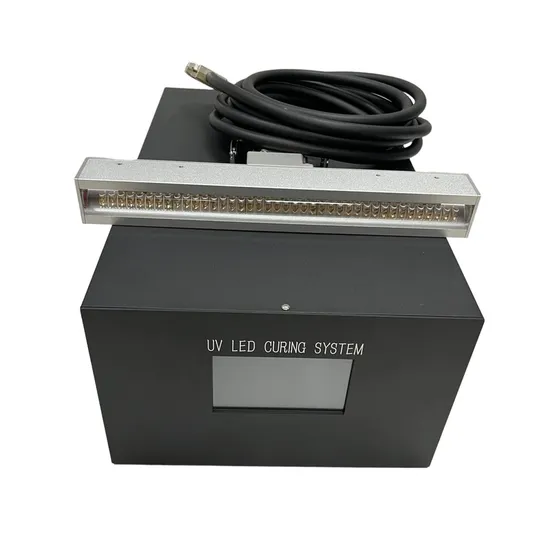

Offset Printing UV LED Curing Lamp Head 1000W Water-Cooled UV LED Systems UV Printer LED Light Source

Product Description

Offset Printing UV LED Curing Lamp Head 1000W Water-cooled Uv LED Systems UV Printer LED Light Source Product Description
Product Parameters

Chip	LG/ SEOUL/EPILEDS/SAN AN	Operating ambient temperature	0ºC-35ºC
Life time	Above 20,000hrs depends on operation environment working time, heat dissiation etc.	Environment humidity	30%-85%RH
Cooling method	Water cooled	Material	Aluminum alloy
Irradiation distance	10-20mm	Irradiation method	by Manual/Automatic/Pedal

Item	Emitting window size	UV intensity (mW/CM2)		Power dissipation	Product dimension	Power supply controller and Water cooling system
		365nm	385/395/405nm
Water cooled system	200*20mm	6000-8000	18000-25000	600W	L245*W70*H90mm	power controller water cooled integration
	300*20mm			900W	L345*W70*H90mm	controller D1200-cm and water cooled system 0.5p
	400*20mm			1200W	L445*W70*H90mm	controller D2000-cm and water cooled system 0.5p
	500*20mm			1500W	L545*W70*H90mm	controller D2000-cm and water cooled system 0.8p
	600*20mm			2400W	L645*W70*H90mm	controller D2000-cm and water cooled system 1.5p
	Customized	lamp length can be customized. each additional 50mm=150W

Product Aging Test
Product Application Application:
1) UV glue curing;
2) Painting industry;
3) Wood curing ;
4) UV printing field etc.
Company Profile Ao Tai Long Technology Shenzhen Co., Ltd. is an integrated factory which in integrating product manufacturing, sales and service. The company in the communication, optoelectronics, medical, electronics, printing, painting, inkjet and other industries intensive cultivation,depth study,proffesional
has been widely recognized by the industry.
Our main products are: UVLED point light source, UVLED line light source, UVLED surface area light source, UVLED oven, UVLED portable light source, UVLED tunnel light source, UV testing instruments, UV optical lenses and other related products
The company's products have been successfully used in communication, optoelectronics, medical, electronics, printing, painting, inkjet and other industries.
The company is committed to creating valuable products, always adhere to the "people-oriented, integrity management" development policy and "honest and trustworthy, mutual benefit" business philosophy, is willing to work with new and old friends from all walks of life, hand in hand to create brilliant.
Product Advantage Advantages of UV LED compared with UV mercury lamp
1.UV LED is cold light source, no thermal radiation, the surface temperature of the illuminated item is low.
2.High efficiency.
3.Super long life. The service life of UV LED is more than 20 times that of traditional mercury lamp, and the service life is not affected by the number of switches.
4.The reaction time is fast. UV LED do not need to be preheated and can be printed immediately after turning on, increasing productivity.
5.High security. UV LED has no UVC rays, no ozone release and are not easy to break, and do not need to be equipped with exhaust pipes, which is conducive to environmental protection.
6. High stability.
7. Low energy consumption.
Packaging & Shipping
FAQ Q1:Do you have your own factory?
A1:Yes,we have our own factory and we are professional in uv led fields over 8years experience.
Q2:Do you support OEM,ODM service?
A2: Yes,we support OEM / ODM service and customized product.
Q3:What is your main products?
A3:UV LED light source, UV LED curing light, UV LED COB Array.etc.
Q4:Do you have any MOQ limit for the sample order?
A4: No,MOQ 1 is acceptable.
Q5:What is your normal payment terms?
A5:T/T,PayPal,Western Union etc.
Q6:How long does it take for my order to be shipped?
A6:It usually takes 7-15 working days, depending on the quantity.

---
