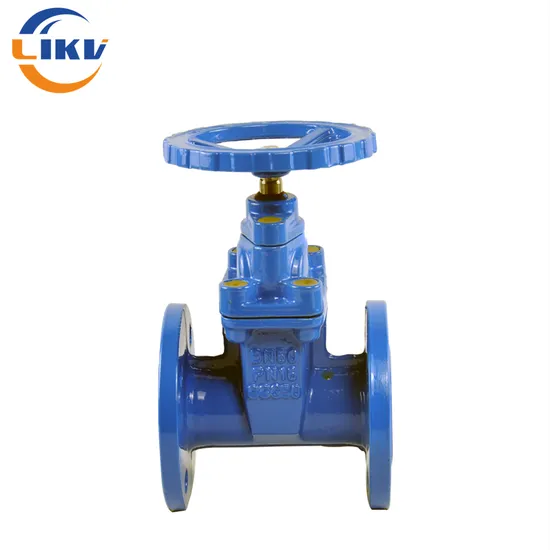

Ductile Iron Rubber Seat Resillient Hand Wheel Operated Gate Valve

Product Description

Ductile Iron Rubber Seat Resillient Hand Wheel Operated Gate Valve Materials of main parts

Part name	Material
Body	Ductile iron, Carbon steel, Stainless steel.
Gate	Ductile iron+EPDM or NBR, Stainless steel
Allen bolts	Carbonization process
Seals	NBR, EPDM
Bonnet	Gray iron, Ductile iron, Carbon steel, Stainless steel
Stem	Stainless steel
O-ring seals	NBR
Thrust bearings	Tin bronze
Bolt	Carbon steel, Alloy steel, Stainless steel
Gland	Ductile iron, Carbon steel, Stainless steel
Dust Cover	NBR
Handwheel	Malleable iron

Product Category
Qualification certificate
Production process
Production equipment
If you want to learn more, please contact us
LIKE VALVE (TIANJIN) CO., LTD
Sales Manager
Yang Lee
http://likevalve.en.made-in-china.com

Address: H12 Tengfei Base of Xiaozhan Industrial Area, Jinnan District , Tianjin, China
We will always be here to try our best to provide you our best service!

---
