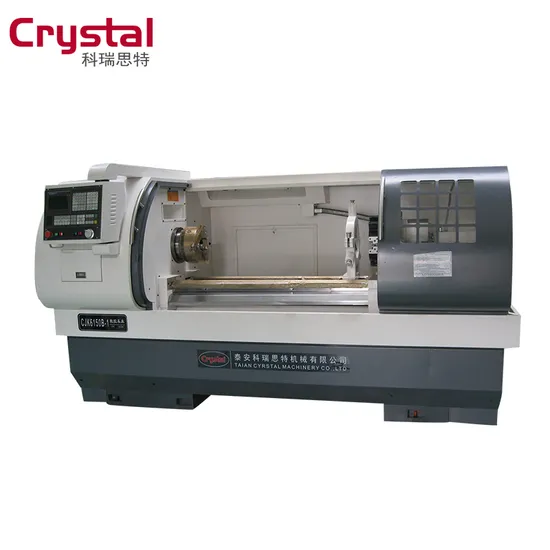

Best Price CNC Lathe Machine Low Cost Lathe Cjk6150b

Product Description

The currency exchange rate fluctuates greatly, please consult customer service for the best price.
Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards. Features:
1. High frequency quenching rail, hardness and high wear resistance
2. 3-gear spindle speed, step-less in gear
3. Spindle with high speed and high precision bearings
4. Increase the spindle diameter to φ82mm, chuck diameter φ250mm
Specifications:

Item	CJK6150B-1
Max. Swing over bed	Φ500mm
Max. Swing over cross slide	Φ280mm
Processing length	750mm/1000mm/1500mm
Width of the bed	400mm
Diameter of spindle bore	Φ82mm
Spindle taper	1:20/Φ90
Spindle nose	Type of spindle head D-8
Spindle speed	30-150,100-500,320-1600rpm
Chuck size	250mm
Tool holder	4 station
Tool bar section	25X25mm
Main motor power	7.5KW
X/Z axis position accuracy	0.02/0.025mm
X/Z axis repeatability	0.01/0.012mm
X/Z axis torque	6/10N.M
X/Z axis travel	X 360 Z 750mm/1000mm/1500mm
X/Z axis fast feeding speed	8/10 M/MIN
Tailstock sleeve travel	150mm
Tailstock taper	MT5
Dimension	2410/2660/3160*1560*1730mm
Weight	2900/3300/3600kg
Lathe bed structure type	Split casting type/Overall casting type

Details:
1.Guide width: 390mm
2.Spindle bore: 82mm
3.4-position electrical tool carrier/turret/post
4.Spindle speed: auto 3 -steps speed change by one handle, stepless speed change in the step (range of spindle speed: 20-100,100-550,400-1600rpm)
5.X/Z axis servo drive
6.CNC system: GSK980TB2
7.Motor power: 7.5KW
8.Automatic electronic pump lubrication
9.Semi-enclosed protection
10.Manual chuck,manual tailstock
Optional Configuration :
1.Siemens system /Fanuc system
2.Hydraulic chuck/ pneumatic chuck
3.Hydraulic tailstock/ pneumatic tailstock
4.6-piece electric tool post/8- piece electric tool post/ Gang type tool
5.Auto bar feeder

---
