Electromagnetic Vibration Testing Machine / Tester Vibration Shaker

Product Description

Product Description

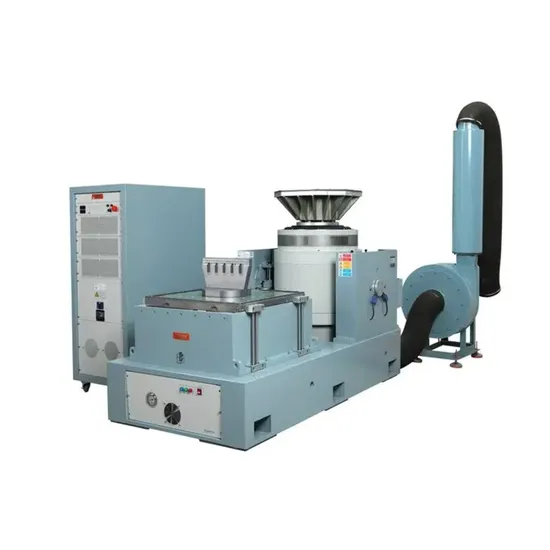

Electromagnetic Vibration Testing Machine / Tester Vibration Shaker
Product Application
Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.
Gonoava can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.
Electromagnetic Vibration Testing Machine / Tester Vibration Shaker
Introduction to digital vibration controller
The vibration controller adopts the advanced distributed structure system, the closed-loop control is realized by the DSP processor, and the PC is independent of the control ring, which ensures the real-time and efficient control system, can respond to any change of the test system in time and quickly, and ensure the stability and high precision of the control. The hardware adopts 32-bit floating point DSP processor with main frequency up to 300MHz, ADC/DAC with 24-bit resolution, and high-precision floating point digital filter and low noise design technology of hardware circuit. The controller randomly controls the dynamic range of more than 90dB, and the signal-to-noise ratio is more than 100dB.
Electromagnetic Vibration Testing Machine / Tester Vibration Shaker
vibration controller features:
A. High performance and reliability
B, simple operation
C, powerful function and flexibility
D. Test safety
E. Generate test reports
Product Parameters

Parameters of VG600-50 electromagnetic vibration generator
Max. Sine force	600Kg.f peak (5.88KN)
Max. random force	600Kg.f r.ms (5.88KN)
Max. shock force	1200Kg.f peak (11.76KN)
Frequency range	1 - 3000 Hz
Max. displacement	50.8 mm p-p
Max. velocity	2m/s
Max. acceleration	100G (980 m/s2)
First-order resonance frequency	3200 Hz±5%
Effective load	200 kg
Vibration isolation frequency	2.5 Hz
Diameter of armature	Ф200 mm
Mass of armature	6kg
Table screw	16×M8
Flux leakage	<10gauss
Allowable eccentric moment	300N.m
Shaker dimensions	800×600×710 mm
Shake weight	About 320 Kg
Amp6K digital switch power amplifier
Output power	6KVA
Output voltage	100V
Output current	60A
Amplifier efficiency	≥90%
Switching frequency	116KHz
Signal to noise ratio	≥65dB
Noise	≤70dB
Amplifier dimension	880×590×1590 mm
