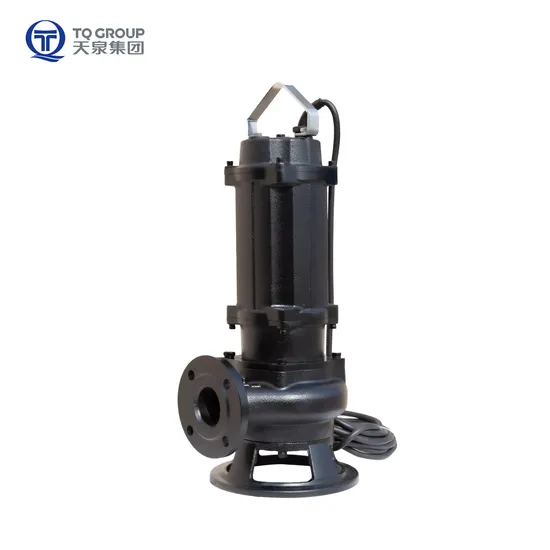

Wq (JYWQ) Series Non-Clog Submersible Sewage Pump Dirty Water Pump 50Hz 0.55HP/0.75HP/1.1HP/1.5/HP/2.2HP/3HP/4HP Irrigation Pump

US$103.00-405.00 20 Pieces (MOQ)

Basic Info.

Model NO.
WQ<7.5KW (380V/50Hz, IP68/F)
Max.Head
30-50m
Max.Capacity
300-400 L/min
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
Low Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Vertical Pump
Pump Casing Combined
Verticaljoint Surface Pump
Mounting Height
Since Irrigation Centrifugal Pumps
Impeller
Open
Usage
Pump, Pumps
Motor
3 pH
Voltage/ Frequency
380V/50Hz
Protection Class
IP68
Insulation Grade
F
Impeller Type
Double Channel Impeller
Cable Length
6m or Customzied Length
Protetion
Built-in Overheat Protection
Transport Package
Wooden Case
Trademark
tqpumps
Origin
China
HS Code
8413709190
Production Capacity
24000 PCS/Yrs

Packaging & Delivery

Package Size
80.00cm * 80.00cm * 180.00cm
Package Gross Weight
10000.000kg

Product Description

Product Description WQ Series Submersible Sewage Pumps hold a comprehensive optimized design on its hydraulic model, mechanical structure, sealing, and motor cooling and protection. We offer three types of impellers to guarantee non-clogging ability and long service life: double-channel impeller for liquid containing solid particles and short fibers; open impeller for sewage containing long fibers; closed impeller for high lifting working condition; stainless impeller for light corrosive liquid. Besides good performance, we have advanced machining equipment and assembly lines to enhance productivity and lower the cost of the pump.
Application
Product Advantage
Product Structural drawing
Product Parameters
Item No. Model Power Discharge nozzle Flow Head Power RPM
Vol./Freq. DN Inch m3/h L/min m kw HP r/min
1 32WQ10.5-11-0.75 380V/50HZ 32 1.25" 10.5 175 11 0.75 1 2900
2 32WQ12.5-15-1.1 380V/50HZ 32 1.25" 12.5 208 15 1.1 1.5 2900
3 32WQ15-18-1.5 380V/50HZ 32 1.25" 15 250 18 1.5 2 2900
4 50WQ20-10-1.1 380V/50HZ 50 2" 20 333 10 1.1 1.5 2900
5 50WQ21-13-1.5 380V/50HZ 50 2" 21 350 13 1.5 2 2900
6 50WQ25-15-2.2 380V/50HZ 50 2" 25 417 15 2.2 3 2900
7 50WQ17-20-2.2 380V/50HZ 50 2" 17 283 20 2.2 3 2900
8 50WQ20-25-3 380V/50HZ 50 2" 20 333 25 3 4 2900
12 65WQ24-8-0.75 380V/50HZ 65 2.5" 24 400 8 0.75 1 2900
13 65WQ27-10-1.1 380V/50HZ 65 2.5" 27 450 10 1.1 1.5 2900
14 65WQ32-12-1.5 380V/50HZ 65 2.5" 32 533 12 1.5 2 2900
15 65WQ30-12-2.2 380V/50HZ 65 2.5" 30 500 12 2.2 3 2900
16 65WQ35-15-3 380V/50HZ 65 2.5" 35 583 15 3 4 2900
20 80WQ50-9-2.2 380V/50HZ 80 3" 50 833 9 2.2 3 2900
21 80WQ60-10-3 380V/50HZ 80 3" 60 1,000 10 3 4 2900
