NBR Aircondition Flexible Rubber Cooper Insulation Pipe/Tube Extruder Machine

US$85,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
XJW-120mm 20D
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Type
Rubber Extruder
Model Number
Bne150-01-00
Screw Diameter
150mm
Color
Based on Customer Demand
Dimension(L*W*H)
4200(L)×1600 (W)×1500(H)mm
Weight
6500kgs
Power
160kw
L/D
20:1
Vacuum System
Yes
Screw Speed
0-45
Gear Reducer
18.5:1
Capacity
1000kg/Hour
Place of Origin
Zhejiang, China (Mainland)
Warranty
2 Years
After-Sales Service
Provided: Engineers Available to Service Machinery
Transport Package
Wooden Pallet
Specification
150mm
Trademark
ZHEJIANG BAINA
Origin
Taizhou
HS Code
8477209000
Production Capacity
10 Set/Sets Per Month

Product Description

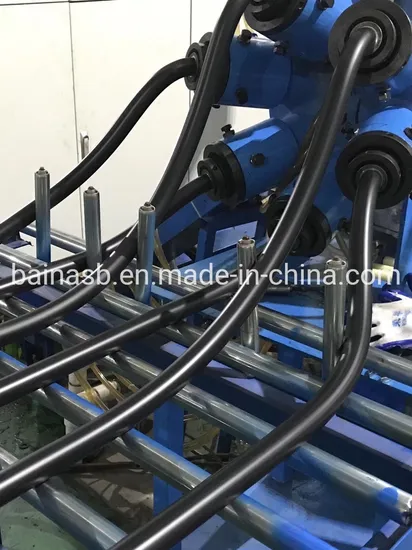

Rubber extrusion vulcanization machine for insulation sheet and pipe product, yoga mat, rubber foam product.


Various types of basic parameters:
Item Diameter of screw(mm) L/D ratio Speed of screw(r/min) Driving power(kw) Max output of production (kg/h) Weight(kg)
150mm 20D (vacuum) 150 20: 1 0-45 160 1000 6500
150mm 16D 150 16: 1 0-45 132 800 6500
120mm 20D (vacuum) 120 20: 1 0-50 110 700 5200
120mm 16D 120 16: 1 0-50 110 600 5200
90mm 20D (vacuum) 90 20: 1 0-55 55 320 3200
90mm 16D 90 16: 1 0-55 55 280 3200
75mm 20D (vacuum) 75 20: 1 0-55 37 160 1200
75mm 16D 75 16: 1 0-55 37 140 1200
50mm 12D 50 12: 1 2-70 7.5 50 600

Order Guide:
1. Ship date: 30----120 working days
2. Payment terms: T/T or L/C
3. Full range of devices to be provided on schedule, as per client demands.
4. Responsible for training technicians and operators for operation and maintenance of the equipment.
5. Responsible for installing and debugging all devices.
6. Formula available and long term technical supports.
7. Guarantee: One year guaranteed repair and lifelong tracking service, with parts provided.
8. All the parameters of the machine on metric units and in English.
9. Package: Standard export wooden pallet.
