Welcome to visit

High Efficiency Vertical Automatic Dsz-12 (T) CNC Drilling Machine

US$1,799.00-1,899.00 1 Piece (MOQ)

Basic Info.

Model NO.
DSZ-12 (T)
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
0
Hole Diameter
12mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Type
Drilling & Milling Machine
Drilling Speed
480-3030r/Min
Voltage
220V/380V
Power
0.75kw
Spindle Taper
B16
Column Diameter
85mm
Working Table
250*300mm
Max. Drilling Diameter
12mm
Spindle Travel
100mm
Drilling Capacity
10mm/12mm
Main Spindle to Work Table
140-450mm
Transport Package
Wooden
Specification
180kg
Trademark
CDK
Origin
China
HS Code
8459700000
Production Capacity
500sets/Month

Packaging & Delivery

Package Size
70.00cm * 80.00cm * 150.00cm
Package Gross Weight
300.000kg

Product Description

Product Description

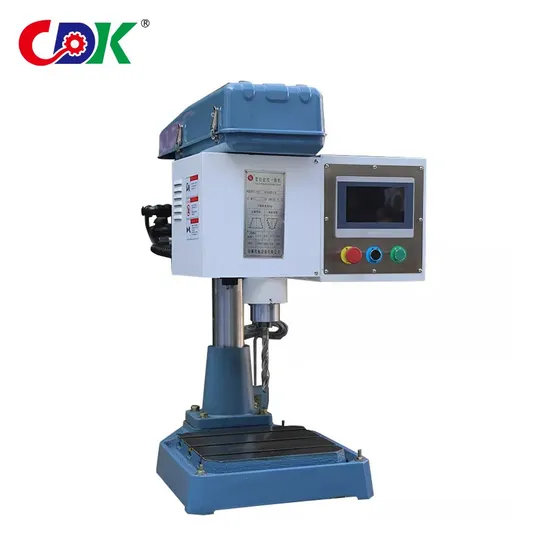

High Efficiency Vertical Automatic DSZ-12 (T) CNC Drilling Machine
1. Designed according to CNC machining center, high efficiency and high speed.2. The workpiece processing time is reduced by 60%, and the processing efficiency is increased by 2-3 times.3. Single and continuous action, time waiting setting, segment feeding,etc.4. High precision ball screw.5. Intelligent control, simple operation, repeatability up to 0.02mm.
