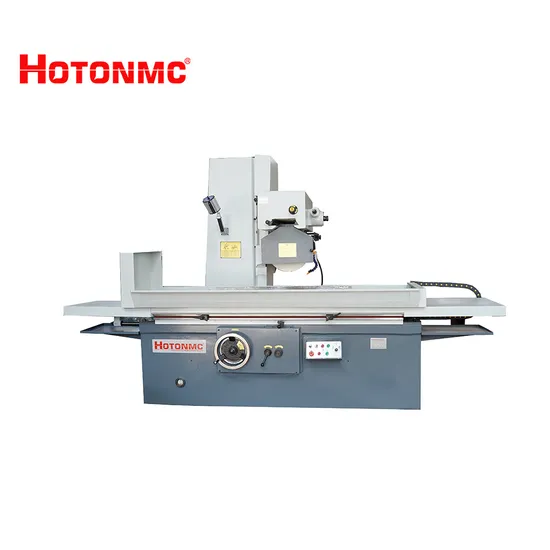

Flat Surface Manual Feed Grinder Grinding Machine M7163

Product Description

WHEEL HEAD MOVING SURFACE GRINDING MACHINE FEATURES:
1.Wheel Head
The wheel head adopts the bearing bush structure, so that to handle the heavy duty machining job. The wheel head vertical movement is controlled manually, it also equips with the rapid elevating unit to reduce the labor intensity and improve the working efficiency.
2.Workable
The worktable longitudinal movement is driven by the vane pump, so that to make the movement stable and fluently with low noise.
3.Accuracy
The accuracy of this machine is 0.005mm and it can meet the routine machining job requirement.
4.Operation
The machine gets the hydraulic auto feed and manual feed in cross feed unit, which is very convenient for operation.
The machine not only works stable and performance reliable, but also gets the advantages of low noise, accuracy stable and easy operation.
SPECIFICATIONS:

MODEL		UNIT	M7150A	M7150A	M7150A	M7163	M7163	M7163
Worktable size(WxL)		Mm	500x1000	500x1600	500x2200	630x1250	630x1600	630x2200
Max matching dimension(W x L)		Mm	500x1000	500x1600	500x2200	630x1250	630x1600	630x2200
Max distance between spindle center line and worktable surface		Mm	700
Longitudinal moving speed of worktable		m/min	3-27
T-slot number x W		Mm	3x22
Wheel head	Continuous feed speed	m/min	0.5-4.5
Cross moving	Intermittent feed speed	Mm/t	3-30
	Hand wheel feed	Mm/gra	0.01
Vertical Moving	Rapid speed	Mm/min	400
of wheel head	Hand wheel feed	Mm/.gra	0.005
Wheel Head	Power	Kw	7.5
motor	Rotation speed	Rpm	1440
Total power		Kw	12.25	13.75	15.75	13.75	15.75
Max loading capacity of worktable (with chuck)		Kg	700	1240	1410	1010	1290	1780
Chuck size(WxL)		Mm	500x1000 x1	500x800 x2	500x1000 x2	630x1250 x1	630x800 x2	630x1000 x2
Wheel size (ODxWxID)		Mm	400x40x203
Machine dimension(LxWxH)		Cm	311x190 x242	514x190 x242	674x190 x242	399x220 x242	514x220 x242	674x220 x242
Machine Weight		t	5.78	7.32	8.78	6.86	7.85	9.65

Contact Us:

Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD hotonmachinery.en.made-in-china.com

Company Profile:

Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.

The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.

Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills.

---
