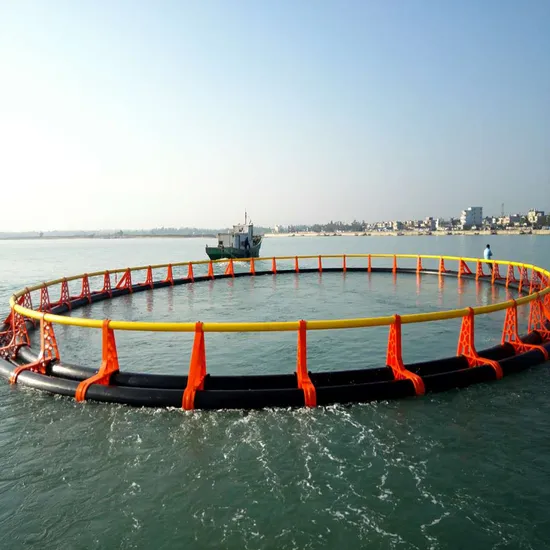

Competitive Fish Farming HDPE Cage

Product Description

product of features
Nanfengwang cage has a strong ability of anti-wind,anti-current and anti-wave. It's made of new material HDPE pipe,makingthe cage have a long life. The cage capacity is large and makes a high survival rate. 1. Wide range of applications, it can be set in the depth of water from -6m to 50m.
2.Strong ability of wind resistance, can defend against the typhoon,the maximum is 12 grade.Strong ability of wave resistance to 7m,strong ability of current resistance to 1.2m/s.
3.Aquaculture capacity,the living space and growing space are large.
4.The cage has a long life, the cage frame can be used over 15 years.
5.The net can be replaced easily.
6.Material is a marine special HDPE pipe,which is high strength,high toughness,anti-oxidant and anti-aging.
Technical specifications
HDPE round floating cage frame specificaitons

Circumference(M)	Diameter of floating pipe(MM)	Diameter of handrial pipe(MM)	Diameter of stand pipe(MM)
30	200mm	90mm	110mm
40	200mm/250mm	90mm/110mm	110mm/125mm
50	250mm	110mm	125mm
60	250mm/315mm	110mm	125mm
70	315mm	110mm/125mm	125mm
80	315mm	110mm/125mm	--
90	350mm	125mm	--
100	350mm/400mm	125mm	--
120	350mm/400mm	125mm	--
150	350mm/400mm	125mm	--
200	400mm	125mm	--

HDPE square floating cage frame specificaitons

L*W(M)	Diameter of floating pipe(MM)	Diameter of handrial pipe(MM)	Diameter of stand pipe(MM)
3m * 3m	200mm	90mm	110mm
4m * 4m	200mm	90mm	110mm
5m * 5m	200mm	90mm	110mm
6m * 6m	200mm/250mm	90mm/110mm	110mm/125mm
7m * 7m	250mm/315mm	110mm	125mm
8m * 8m	250mm/315mm	110mm	125mm
9m * 9m	250mm/315mm	110mm	125mm
10m * 10m	315mm	110mm	125mm
12m * 12m	315mm/350mm	110mm/125mm	125mm/--
15m * 15m	315mm/350mm	110mm/125mm	125mm/--
20m * 20m	350mm/400mm	125mm	--
30m * 30m	350mm/400mm	125mm	--

Products show
Finish the business with us, you should do as following:
step 1: Tell us your requirements,involved some parameters:shape,diameter
step 2: If you don't have specific parameters or your are not professional in fish farming cage ,you can send us some picture of your cage.
step 3: We will try our best to give you the best suitable size for you.
step 4: If we have confirmed the cage,we will give you a quotation.
tep 5: If you agree with our price,we will make a confirmation with you about some specific parameters.
the business with us, you should do as following:
step 1: Tell us your requirements,involved some parameters:shape,diameter
step 2: If you don't have specific parameters or your are not professional in fish farming cage ,you can send us some picture of your cage.
step 3: We will try our best to give you the best suitable size for you.
step 4: If we have confirmed the cage,we will give you a quotation.
step 5: If you agree with our price,we will make a confirmation with you about some specific parameters.

---
