High Quality Perforating Bathroom Roll Towel Machine Price

Product Description

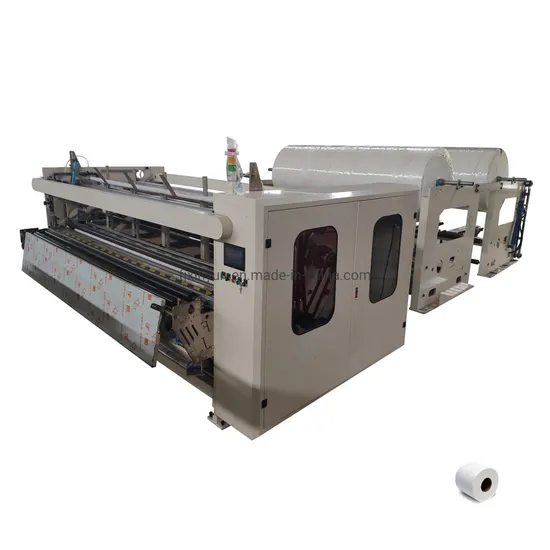

XY-TQ-B High Quality Perforating Bathroom Roll Towel Machine Price
Functions and Features
1. This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
Technical Parameter

Model	XY-TQ-B Wall Type Automatic Toilet Paper Rewinding Machine
Jumbo Roll Width	Max.2800mm (Other size can be specified)
Jumbo Roll Diameter	Φ1200mm(Other size can be specified)
Jumbo Roll Inner Core Diameter	3inches(76.2mm) (Other size can be specified)
Perforation Distance	4 anvil Blades(115mm)(Other size can be specified)
Finished Product Diameter	Φ80~φ130mm
Finished Product Inner Core Diameter	φ38~φ76mm
Production Speed	0~230m/min
Program Controller	PLC(Delta)
Jumbo roll paper stand	1 or 3 Stands(Need to be specified)
Pneumatic System	3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
Main Power	14KW
Overall Dimension(L*W*H)	depend on the model
Weight	About 7-12T
Jumbo Roll Layers	1 or 3 Stands(Need to can be specified)
Edge-Line Embossing(can be specified)	Steel to steel (Pneumatic Control)
Embossment (can be specified)	Picture one with one set embossing roller, steel to rubber.( Double set embossing roller is optional.)
Voltage	380V 50HZ

Big original paper roll Width:1200~2800mm
jumbo roll * Toilet paper * Kitchen Towel Paper
***********************************************************************************************
PRODUCTION LINE :
1>>XY-TQ-A-H Automatic maxi roll machine production line
2>>XY-TQ-A-G Fully Automatic Toilet Paper and Kitchen Towel Paper Production Line
3>>XY-TQ-A-D Automatic Toilet Paper Production Line
**********************************************************************************
FAQ
How much is this machine?
1. Please tell me what's the size of napkin paper will you produce?
2. Do you need color printing? One or two colors printing?
3. What's the daily capacity of machine do you need?
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city
Company Information
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery anufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
If you need more information about these machine,please feel free to contact me!
Welcome to contact us to get more details !
We can design the machine according to your request.

---
