Charcoal Briquette Making From Leave/Brickette/Bagasse

Product Description

Charcoal Briquette Making From Leave/brickette/bagasse Product Description

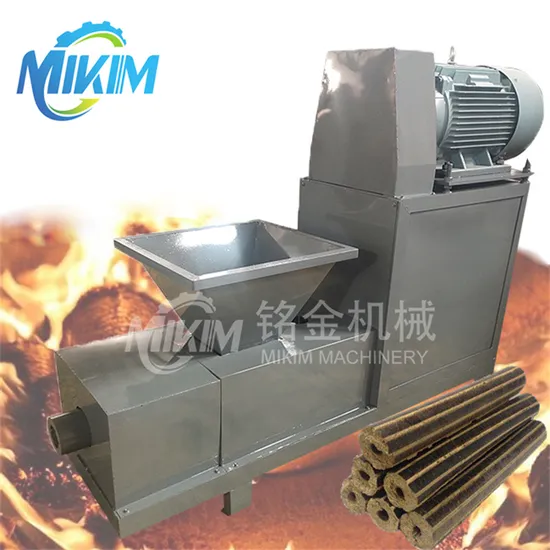

Biomass briquette machine shows the features of high capacity, low energy consumption, compact and durable. Many performance data such as capacity, wood briquettes density, electricity consumption and wearable degree has reached advanced level. Charcoal briquette machine can be used as charcoal powder briquette machine by replacement of some spare parts. The out diameter of finished briquettes is 50mm/80mm.
Biomass Briquette investment is a best project to generate revenue from agro-forestry waste and to produce Green Energy to save the global environment. The awareness of using Eco-friendly & Non-conventional Bio-coal / Bio-fuel is increasing day-to-day due to the increasing of the conventional fuel cost. This plant can make charcoal stick of different diameter and different shape from biomass and agro-forest waste. Raw Material to make Biomass
Briquette:Any type of Agro-Forestry waste can be used.
Product Parameters

Model	Motor	Capacity	Dimension(m)	Weight
BR-50A	15kw	260-280kg/h	1.6*0.65*1.4	700kg
BR-50B	18.5kw	300-320kg/h	1.7*0.65*1.4	800kg
BR-50C	22kw	320-340kg/h	1.9*0.7*1.45	900kg
BR-80	22kw	250-300kg/h	1.8*0.7*1.6	700kg

Product Application
The process for sawdust briquetting press as follow: 1. Crush the raw material into small pieces (diameter is about 3-5mm)
2. Dry the material by machine or dried it in the sun , till the moisture is less than 12%
3. Put the material into feed let of briquette machine
4. Produce the briquette stick from biomass material without any additive
5. Carbonized the briquette stickFireplace etc.
Raw Material:
*Biomass wastes, such as sawdust,rice husks,coffee husks,rice straw, wheat straw,etc.
*Material required: Moisture 8%-12%,size3-5mm
*If moisture>12% may need dryer,We have air flow dryer and drum dryer.
*If material size >5mm will need hammer mill or wood crusher.
*When begin to work,the heating circle heat the machine,then wood briqutte machine can press sawdust without any binder, sawdust pressed by high temperature and high pressure , then the screw press sawdust forward,extrusion into a rod-shaped solid rod with center hole.
Application for Charcoal Briquette :
1. Used as bio fuels for boiler
2. For Stove, Home heating
3. Used BBQ charcoal for Barbecue
4. Fuels for Europe country Fireplace etc.
Our Advantages

1. The machine has the characteristics of reasonable design, reliable manufacturing quality, simple structure, convenient
operation, small volume, less area, less work and electricity saving. 2. The designed automatic control electric heating device can adjust the dry humidity of the material randomly, ensure the stability of the material forming and improve the working efficiency. 3. The main parts of this product are specially treated with wear-resistant material, so it can be continuously pressed and durable.
4. It is suitable for the pressing and forming of various biomass raw materials, with less energy consumption and high production efficiency.
5. Three bearing the heart of the old machine is four, an increase of the machine stability and durability.
6. The old type of oil - based lubrication is oil immersion lubrication, as long as it is not short of oil, it can be used for many years.
7. Increase the pitch to increase the feed volume, thus greatly increase the output.
8. The structure of the molding cylinder is improved, the friction force between the machine and the raw material is reduced, and the density of the mandrel is increased.
