Basic Info.
Testing Equipment Type
Car Computer Detector
Update Method
by Internet
Product Name
Usbcan-Iipro
Operating System
Winxp,Win7,Win8,Win10
Software
Ecantools Software Test
Working Temperature Range
-40ºC~+85ºC
Max Receiving Data
14000 Fps
Adapter for USB Connection
USB 1.1, Compatible with USB 2.0
Specification
102x63X23mm
Production Capacity
10000
Product Description

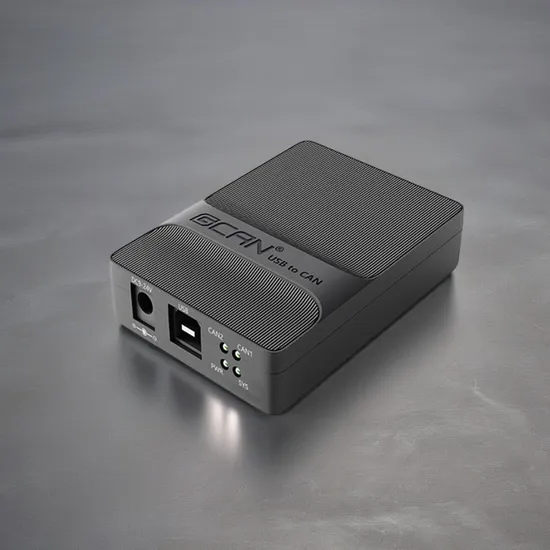

USBCAN-II Pro adapter is a debug or analysis tool with two CAN-Bus channel. Using this adapter, PC can quickly connect to CAN-Bus network through USB interface, and become a intelligent node of CAN-Bus to transmit/receive CAN-Bus data.
Adapter comes with isolation, and can be used in different Windows systems. Device driver, software and programming interfaces(VC,VB, Net, Del phi, Labview, C++Builder) exist for different operating systems, so programs can easily access a connected CAN bus.
| Physical |
| Size (LxWxH) | 102*63*30mm |
| Operating temperature | -40ºC~+85ºC |
| The shell material | Aluminum alloy |
| Interface form | Open 6 |
| CAN channel number | Double |
| Electrical |
| Voltage supply | USB supply |
| Working voltage | 5V |
| Isolation voltage | Magnetic isolation of 3000V |
| System |
| Support system | Windows 2000/2003 XP/7/8/10/E.g. |
| development environment | VC VB C C+ C++ C++Builder NET Labwindows Del phi LabVIEW |
| CAN bus characteristics |
| Baud tate | 5Kbps~1Mbps |
| Transfer speed | Send up to 8000 frames/s and receive up to 14000 frames/s |
| Execution standard | Support CAN 2.0A CAN2.0B ISO/DIS 1188-1/2/3 |
| USB bus characteristics |
| Execution standard | Compliant with USB2.0 full speed Compatible with USB1.1 Spupport USB3.0 |
Packing
>>
