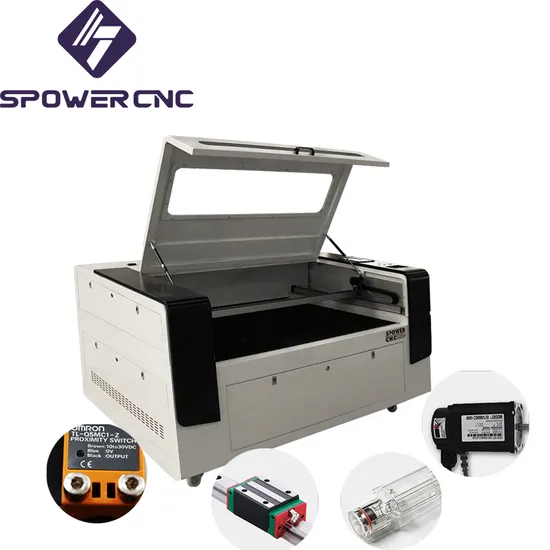

CO2 Laser Cutting Machine for Wood Board Acrylic Sign Glass Textile Engraving CO2 Laser CNC Carving Machine

Product Description

co2 laser cutting machine for wood board acrylic sign glass textile engraving co2 laser cnc carving machine
Product Description
CO2 laser cutting machine is a multi-function laser process device which combines the functions of drawing, engraving and cutting.
It adopts automatic stainless steel crawler platform & large scope, so it can meet the demand of large-format cutting, carving for wood,MDF,acrylic,fabric,paper.
This Laser Engraving Machine not only have all the large scale engraving machines function, but also have mechanical design, capability, auto focus and working area perfect improved.
Feature:
1. Adopting seamless welding and body bending technology, can make sure the machines' stable and reliable working performance.2. X,Y axis adopted high precision and high speed Shanghai Fulong belt transmission.3. Red light positioning system realizes the exact position without laser.4. Taiwan Hiwin square guide rail, high accuracy and long life time.5. Adopting high-torque Leadshine stepper motor and drivers.6. Special "front" and "back" open design suitable for the super-length material process.7. Exclusive no water warning and automatic protection system, to protect the working life of laser tube effectively. The power control system has exclusive automatic protection equipment to ensure the stability and safety of the laser cnc engraving machine to the best.8. Control panel in English, convenience of operation control.9. laser engraving machine has the function of re-carving after break point and power failure.10. Offline/online control system which can not only work without computer, but also connect to U disk, USB communication.

Model	CO2 laser cutting machine
Laser power	40w/60w/80w/100w/130w/150w
Engraving speed	100-600mm/s
Cutting speed	0-30mm/s
Location precision	≤0.01mm
Power supply	AC110- 220V/50-60HZ
Minimum shaping character	English 1 x 1mm
Graphic format supported	BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DWG,etc

Detailed Photos
Auto Focus And Red Dot Pointer
Users can easy focus for different thickness material.
Red dot pointer help shows where the laser beam goes.
Standard Reci W2-W8 Laser Tube
China top brand Reci brand W2 -W8 CO2 laser tube, with estimate 10,000 hours life span and 18 month warranty.
Optional power:
Reci W1 75-90W/ W4 100-130W
W6 130-150W/ W8 150-180W
Optional glass tube: EFR, Yongli, SPT,
Optional RF tube: Synrad, Coherent, DAVI
Control panel
Ruida control system LCD digital control panel with USB interface, support offline work. (Chinese, English, Japanese, French, German, Portuguese, Polish, Spanish, Russian, Korean,Vietnamese, Indonesian, Italian,
Turkrish, Arabic.)
MIRRORS AND LENS
American imported material made lens,making the lens with high quality.

Application
Application industry:
Like some red wood furniture, handicraft, billboard engraving, leather costume pattern , airplane model, building model engraving, stone engraving, album pattern.
Application materials:
rubber, paper, crystal, wood, marble, organic glass, leather, fabric, acrylic, all kinds of stone...
If you have any questions, please contact us
Related Products

If you have any questions, please contact us

Certifications
Packaging & Shipping
Firstly, we will packed the co2 laser metal cutting machine with plastic sheet for clearing and damp proofing, Then put the laser machine in the plywood case for safety and clashing. Finally, transport co2 laser machine to seaport.

Packaging & Shipping: 1.Standard plywood case, its compressive strength and bearing quality is better.2.The board area is bit, the soil structure is good, it is better in leakproofness and waterproof.3.When importing, the plywood case is with fumigation-free, the procedure is simple.4.Delivery Detail: within 20days after received your payment The advantages of Plywood Case Package:--Firstly,plywood case,its compressive strength and bearing quality is better,it is the market of choice for the goods ofhigh-weight packaging--Secondly,the board area is big,the soil structure is good,and operational process is simple,So it is better in leakproofness and waterproof.--Thirdly,when importing,the plywoodcase is with fumigation-free,the procedure is simple
Company Profile
SPOWER MACHINERY CO., LTD was established in September 2014 and is located in Jinan, Shandong. The factory covers an area of 23,000 square meters and has a total of more than 200 employees, of which professional and technical personnel account for more
than 70%. The company has been focusing on the laser industry for many years, digging deep into scientific and technological innovation, and meeting the needs of customers is our driving force.
The main products are: laser cutting machine, ultra-high power laser cutting machine, plate and tube integrated fiber laser cutting machine, high-power all-enclosed exchange platform fiber laser cutting machine, automatic loading and unloading laser cutting machine, tube fiber laser cutting machine.
FAQ
Q: How to install and run CO2 laser engraving&cutting machine?
A: Our technicians have installed the machine before shipment. For the installation of some small parts, we will send detailed training videos and user manuals with the device. 95% of customers can learn by themselves.
Q: What should I do if CO2 laser engraving&cutting machine fails?
A: If you encounter such problems, please contact us as soon as possible, and do not try to repair the machine by yourself or others. We will reply as soon as possible within 24 hours to solve it for you.
Q: Are you a factory or a trading company?
A: We are a factory with rich experience. Or directly make an appointment with the customer for a video factory inspection. Send factory inspection video to customers to watch
Q: How should I do if the machine have some problem?
A: If your macine such problems, please contact us as soon as possible, and do not try to repair the machine by yourself or
others. We will reply as soon as possible within 24 hours to solve it for you.

---
