Product Description
Product Description

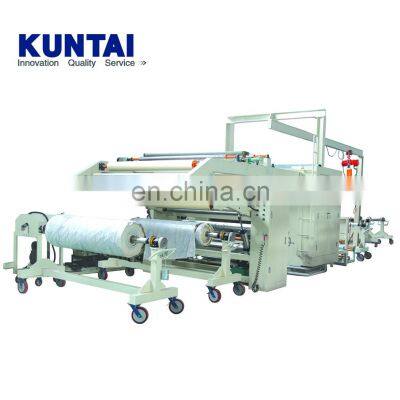

hot melt glue fabric laminating machine
Product Description
In industrial use, hot melt adhesives provide several advantages over solvent-based adhesives. Volatile organic compounds are reduced or eliminated, and the drying or curing step is eliminated. Hot melt adhesives have long shelf life and usually can be disposed of without special precautions.
The most advanced hot melt adhesive, moisture reactive hot melt glue (PUR & TPU), is highly adhesive
and environmentally friendly. It can be used for lamination of 99.9% textiles. The laminated material is
soft and high temperature resistant. After moisture reaction, the material will not be easily affected by the
temperature. Besides, with lasting elasticity, the laminated material is wear resistant, oil resistant and ag
-ing resistant. Especially, mist performance, neutral color and other various features of PUR makes medi
-cal industry application possible.
LAMINATING MATERIALS:
Fabric + fabric:textiles, jersey, fleece, Nylon, Velvet, Terry cloth, Suede,etc.
Fabric + films, such as PU film, TPU film, PE film, PVC film, PTFE film,etc.
Fabric+ Leather/Artificial Leather,etc.
Fabric + Nonwoven
Diving fabric
Sponge/ Foam.
Plastics
EVA+PVC
WIDELY USED IN:
Textiles and Garments Industry
Medical Products Industry
Bags and Luggage Industry
Packaging Industry
Footwear Industry
Decoration Industry
Auto interior decoration Industry
APPLICATION AND FEATURES OF HOT MELT LAMINATING MACHINE
1. Applied for gluing and laminating of hot melt glue onto textiles and nonwoven materials.
2. Hot melt adhesives makes possible environmental friendly products and realizes no pollution during the whole process of lamination.
3. It's of good adhesive property,flexibility,thermostability,non-cracking property at low temperature.
4. Controlled by Programmable Logic Controller system with touch screen and modular designed structure, this machine can be easily and simply operated.
5. Famous brand motors and inverters can be installed for stable machine performance
6. Non-tension unwinding unit makes laminated materials smooth and flat, guaranteeing good bonding effect.
7. Fabric and film openers also makes materials feed smoothly and flatly.
8. For 4-way stretch fabrics, special fabric transmission belt can be installed on the laminating machine.
9. Impregnability of temperature after PUR,lasting elasticity,wear-resistance,oil resistance and anti oxidation.
10. Low maintenance cost and less running noise.
11. When it is applied in lamination of functional waterproof moisture permeable films such as PTFE,PE and TPU, more materials which are waterproofing and insulated, waterproof and protective and oil-water filtering will even be invented.
STANDARD TECKNICAL PARAMETERS OF LAMINATING MACHINE(CUSTOMIZABLE).
| Model: | KT-PUR-1800 |
| Maximum Material Width: | 1600mm |
| Machine Roller Width: | 1800mm |
| Gluing Amount: | 5-80g/m2 |
| Machine speed: | 10-60m/min |
| Power: | 55.0KW |
| Electric Current and Voltage: | Customizable |
| Net Weight: | 11500KGS |
| Dimension: | 11800 x 2950 x 3600mm |
PUR Laminating Machine Details:
>>
